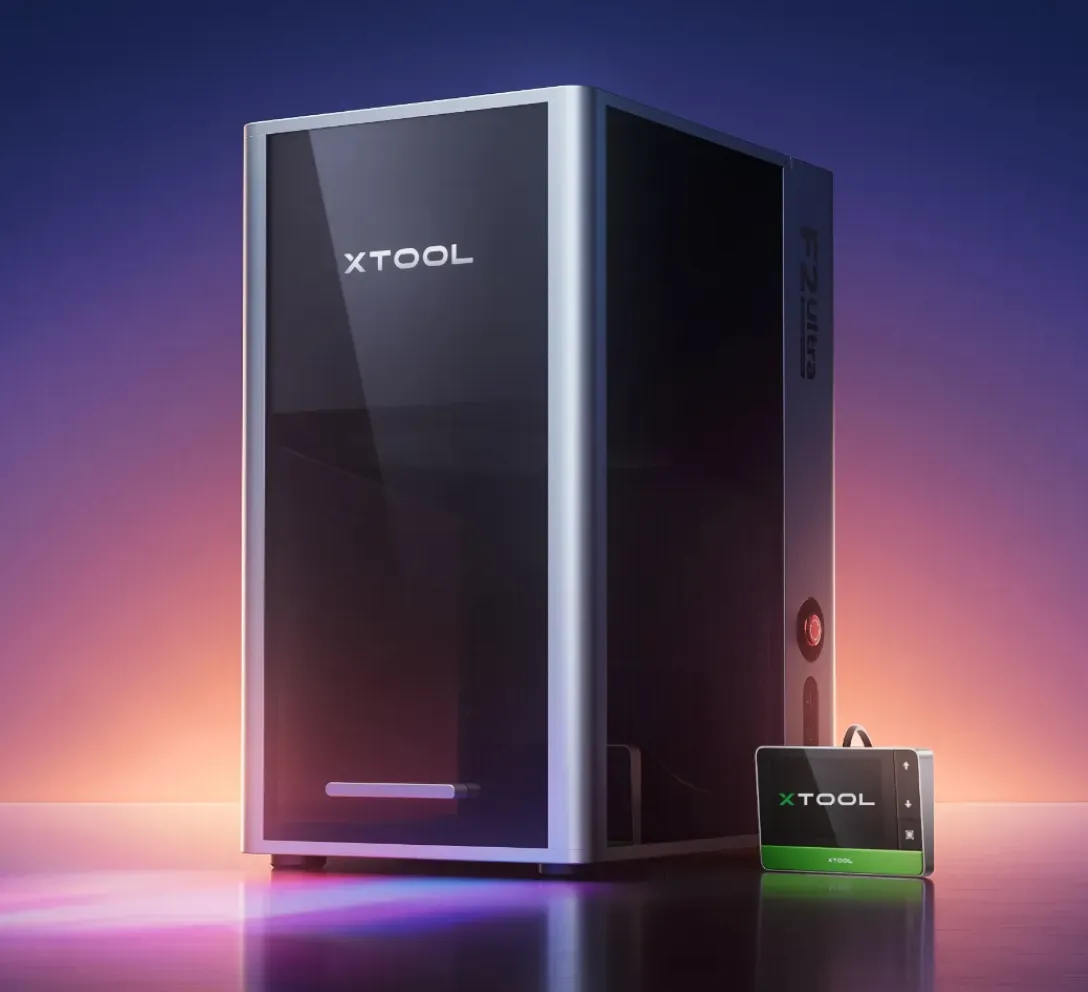

xTool F2 Ultra

The xTool F2 Ultra is a 60W MOPA fiber laser that delivers 3x the power of the F1 Ultra. After extensive testing with stainless steel, aluminum, brass, and anodized materials, I can tell you this: it's fast, the dual camera system is noticeably better, and the MOPA capabilities actually matter for aluminum marking. But don't buy it for color engraving—that's marketing hype that doesn't hold up in real-world use.

Bottom line up front: Get the single laser version at $4,999 and put the $1,500 you'd save toward a dedicated diode laser with air assist. You'll have a more versatile two-machine setup than trying to make the dual version do everything.

How I Tested It

I put the F2 Ultra through the same testing process I use for all fiber lasers: parameter test grids on stainless steel and aluminum, embossing tests on brass coins, comparison runs against the F1 Ultra, and real production work to see where it actually saves time.

The testing revealed some surprises. The camera accuracy improvement over the F1 Ultra is immediately noticeable when centering on small objects. The 60W power makes embossing dramatically faster—what took 30-60 minutes on the F1 Ultra gets done much quicker here. And the removable fan cover is a genuine improvement when you're cleaning up brass powder after embossing jobs.

But here's what disappointed me: the color engraving that looks so impressive in xTool's marketing is painfully slow at only 900mm/s (versus the 15,000mm/s max speed), and the colors are extremely angle-dependent. More on that below.

Understanding MOPA (And Why It Actually Matters)

MOPA stands for Master Oscillator Power Amplifier. Unlike standard fiber lasers where you only control speed and power, MOPA gives you adjustable frequency range and pulse width. This isn't just a spec sheet difference—it enables markings that standard fiber lasers physically cannot do.

What MOPA actually lets you do:

• Black markings on bare aluminum (nearly impossible with standard fiber)
• White markings on stainless steel (standard fiber typically only does dark)
• Color marking on stainless steel (greens, blues, purples, yellows, reds)
• Finer control over marking depth for medical/aerospace applications

The Color Engraving Reality Check

Let's talk about the elephant in the room. You'll see tons of marketing about "full color metal engraving" with MOPA lasers. I tested it extensively. Here's the truth:

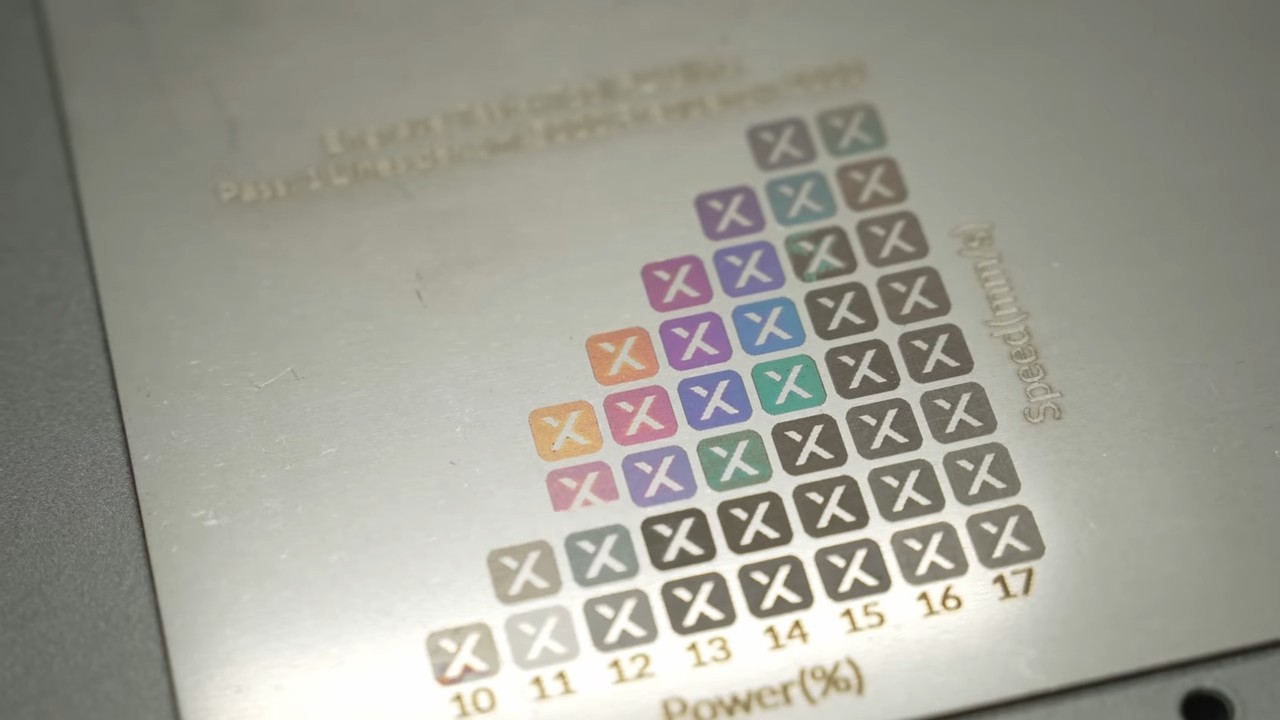

Yes, you can achieve greens, blues, purples, yellows, and reds. The test grids look impressive. But the process runs at only 900mm/s with high line density, takes hours for full color images, and the colors only appear at specific viewing angles with proper lighting. If you need color on metal, UV printing (like the EufyMake EV1) puts actual color ink on the surface faster and with consistent results at any angle.

Don't buy a MOPA laser for color engraving. The real value is in the black/white aluminum marking capability.

Aluminum Marking: Where MOPA Shines

This is where the MOPA capabilities actually deliver. Standard fiber lasers struggle with bare aluminum—you can mark anodized aluminum by removing the coating, but marking bare aluminum is extremely difficult. The F2 Ultra handles it.

I haven't completely dialed in all the aluminum settings yet, but I achieved good dark and light markings that simply aren't possible with traditional fiber. If your work involves aluminum marking, this capability alone might justify the MOPA premium.

Camera System: Actually Better

The dual stereo camera system isn't just a spec bump. In practice, centering artwork on small objects is noticeably more accurate than the F1 Ultra. The stereo vision enables autofocus via distance detection, and it works reliably. For batch engraving workflows where you place multiple items in the work area and let AI detect edges and auto-place artwork, the improved camera accuracy makes a real difference.

Focus System: Two Ways to Get It Right

You get two focusing methods. The dual laser dot system uses a red pointer and the blue 40W diode at low power—raise or lower the bed until the dots overlap and you're in focus. It's intuitive and fast for manual focusing.

The stereo autofocus uses the dual cameras to measure distance and automatically adjust bed height. In my testing, it worked reliably and saves time on repetitive jobs.

The Air Assist Problem (And Why It's Not xTool's Fault)

Here's the biggest limitation: no air assist, which means cutting is impractical. But this isn't a flaw in the F2 Ultra—it's inherent to all galvanometer fiber lasers. The laser head is stationary, and mirrors redirect the beam from a fixed point about 10-12 inches away. There's no moving head to attach an air nozzle to, and you can't have a moving nozzle follow the mirror.

The only fiber lasers with air assist combine galvo and gantry systems (like the upcoming xLaser), sacrificing some speed to gain cutting capability.

This is why I recommend the single laser version. You're paying $1,500 extra for a 40W diode that has a thicker laser spot (less detail than 20W) and can't cut well without air assist. Put that money toward a dedicated diode laser with proper air assist instead.

Embossing: Where 60W Makes a Difference

Brass coin embossing involves slicing a height map into 50-300 layers and "blasting away" each layer with the laser (think reverse 3D printing). On the F1 Ultra's 20W fiber, this takes 30-60 minutes and creates a lot of brass powder that gets everywhere. The 60W power on the F2 Ultra makes these jobs significantly faster. The removable fan cover is also a huge improvement for cleaning up afterward—you can pull it out from the front instead of disassembling the machine.

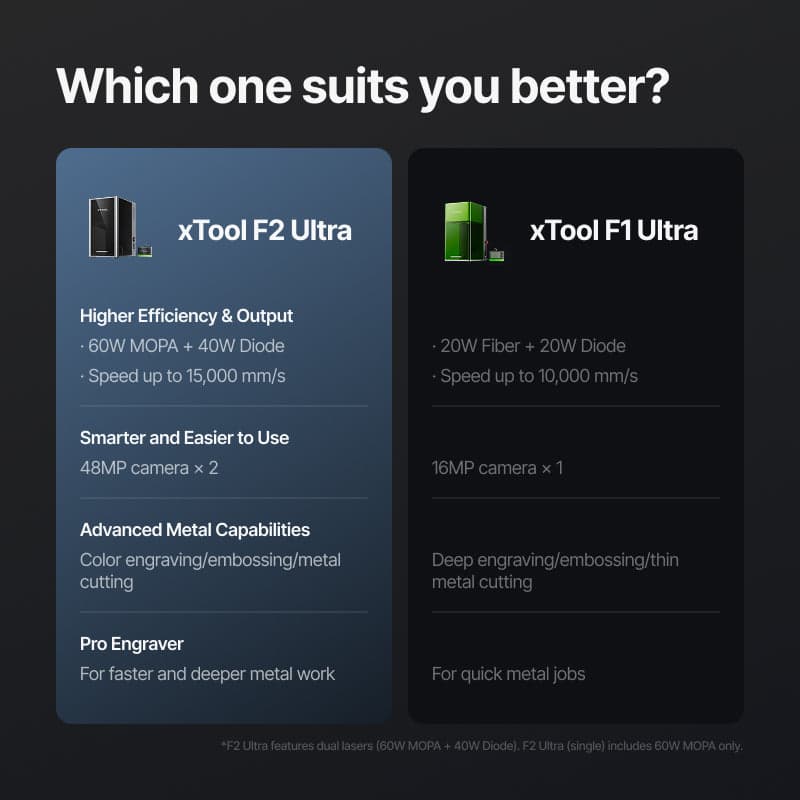

Pricing Analysis: Single vs Dual

Let's break down the actual cost comparison:

Configuration	Price	What You Get
F1 Ultra	$3,599	20W fiber + 20W diode
F2 Ultra (Single)	$4,999	60W MOPA fiber only
F2 Ultra (Dual)	$6,499	60W MOPA fiber + 40W diode

My recommendation: Get the F2 Ultra single laser ($4,999) and add a separate diode laser:

• Creality Falcon 2 Pro 40W - ~$1,299 (right at the price difference)
• xTool S1 20W - ~$1,599 (better for detail work)
• WeCreat Vista 20W - ~$1,299

What you gain with separate machines:

• Air assist for actual cutting capability
• Larger work area (not limited to 220x220mm)
• Gantry design optimized for cutting
• Can run both machines simultaneously
• More versatile overall setup

Software: xTool Creative Space vs LightBurn

This often matters more than spec differences. Almost all competitor 60W MOPA lasers (CloudRay, Commarker, Monport) use LightBurn. The F2 Ultra uses xTool Creative Space.

LightBurn: Extremely powerful and customizable, access to every possible setting, steeper learning curve, one-time purchase (~$60).

xTool Creative Space: Much easier to use, turn on and start engraving quickly, intuitive interface, excellent batch engraving workflow, but less powerful and fewer advanced controls.

Choose based on which workflow you prefer, not minor spec differences between 60W MOPA lasers.

Maintenance Improvements

The F2 Ultra makes maintenance easier than the F1 Ultra. The fan cover is removable from the front—critical when you're cleaning brass powder after embossing jobs. You can also extract the fan from the back to clean or replace it without major disassembly.

Who Should Buy This?

Get the F2 Ultra if you:

• Need high-speed metal marking for production work
• Work with aluminum regularly (MOPA black/white marking capability)
• Do embossing or coin engraving (60W speeds up 30-60 minute processes)
• Value ease of use (Creative Space is the most user-friendly fiber laser software)
• Run a production business where speed affects ROI
• Are upgrading from F1 Ultra and being limited by 20W power

Skip the F2 Ultra if you:

• Primarily want to cut materials (galvo design lacks air assist)
• Want it mainly for color engraving (too slow and angle-dependent)
• Need LightBurn's advanced features (Creative Space is easier but less powerful)
• Are on a tight budget (F1 Ultra at $3,599 is still very capable)
• Need work area larger than 220mm (galvo physics limit expansion)

Comparison with Other 60W MOPA Lasers

Most 60W MOPA lasers have similar specs—comparable power output, ~220x220mm work areas, similar speeds, and decent build quality. The real differences come down to software ecosystem and specific features.

Machine	Price	Software	Key Difference
xTool F2 Ultra	$4,999	Creative Space	Dual stereo cameras, easiest software
CloudRay 60W MOPA	~$5,000	LightBurn	Split design, more customization

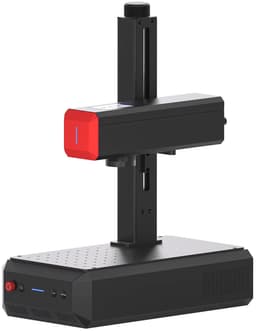

Commarker B6 60W	~$4,600	LightBurn	Lower price, standard features
Monport 60W MOPA	~$4,800	LightBurn	Various designs available

Choose based on which software workflow you prefer and which ecosystem you're already in. If you have other xTool machines and like Creative Space, the F2 Ultra fits perfectly. If you want maximum control and are comfortable with LightBurn's learning curve, the competitors are solid options.

Final Verdict

The xTool F2 Ultra delivers on its core promises: 3x the power translates to real-world speed improvements, the dual camera system is noticeably better for positioning accuracy, and the MOPA capabilities are genuinely useful for aluminum marking. The 60W makes embossing significantly faster, and the removable fan cover is a welcome improvement for maintenance.

But skip the dual laser version. The 40W diode loses detail (thicker spot than 20W) and can't cut well without air assist, yet you're paying $1,500 extra for it. Get the single laser version at $4,999 and invest that $1,500 in a proper diode laser with air assist. You'll have a much more versatile two-machine setup.

Rating: 4.5/5 - Highly recommended with the single laser configuration. For professional metal marking, aluminum work, and high-volume production, it's an excellent choice. For hobbyists or users who don't need the extra power, the F1 Ultra at $3,599 remains a fantastic option.
