I review laser cutters for a living. And I wasted $600 in test materials learning that marketing departments don't understand physics.
My 50W CO₂ laser cut 6mm birch plywood in one pass. Clean edges. Perfect.
Then diode laser companies started claiming their 20W units could do the same thing. Same performance. Half the price. The specs looked great, so I bought three models to test.
First test: 15 passes to cut the same 6mm plywood. Charred edges. I thought I had settings wrong.
By test sheet number 30, I'd tried every combination of power, speed, and focus I could think of. Same result every time. The diode worked - technically. But it took 15 passes where CO₂ took one.
The marketing said "same performance." The physics said something very different.
That's when I stopped trusting spec sheets and started asking "why."
Every answer leads to another "why." It's like that thing with kids - you keep asking until you hit quantum mechanics and even physicists shrug.
This guide is that rabbit hole. Eight levels deep. Each one answers a "why" and opens the door to the next one.
Level 1 is workshop observations - stuff you can see and touch. Level 8 is Schrödinger's equation - math that works but nobody knows why.
Your answer is somewhere in between. Stop reading when you've gone deep enough.
Each level includes:
• The answer to "why does this work?"
• Interactive tools to see it in action
• Practical takeaways for your shop
• A story check-in from my testing journey
Level 1
Let's start with what you already know from using these machines. No theory yet - just the patterns you've seen in your shop. I've tested dozens of lasers over the years, and there's four main types you'll run into. Each one has a personality - things it loves cutting and things that make it look stupid.
40-150W typical | The woodworker's friend
Wood: Clean cuts, no charring at speed
Acrylic: Glass-like polished edges (flame polishing)
Leather: Perfect for detailed work
Paper/Cardboard: Stupid fast, dead accurate
Fabric: Seals edges while cutting
Metals: Beam bounces off like a mirror
Glass: Passes right through (mostly)
Some plastics: Melts instead of cuts (looking at you, PVC)
Transparent materials: Nothing to absorb the energy
Wood: Clean cuts, no charring at speed
Acrylic: Glass-like polished edges (flame polishing)
Leather: Perfect for detailed work
Paper/Cardboard: Stupid fast, dead accurate
Fabric: Seals edges while cutting
Metals: Beam bounces off like a mirror
Glass: Passes right through (mostly)
Some plastics: Melts instead of cuts (looking at you, PVC)
Transparent materials: Nothing to absorb the energy
Point it at birch plywood: clean cut, slight brown edge, smells like a campfire. Point it at aluminum: nothing happens, maybe some smoke if there's residue on the surface. The beam literally reflects off like a bathroom mirror.
20-60W typical | The metalworker's weapon
Steel/Stainless: Marks, engraves, even cuts thin sheets
Aluminum: Beautiful anodized marking
Brass/Copper: Fast marking (after they warm up)
Coated metals: Perfect for removing paint/coating
Some plastics: ABS marks really well
Wood: Just chars the surface, no clean cuts
Acrylic: Terrible edge quality, melts and deforms
Natural materials: Leather, paper - not great
Transparent things: Same problem as CO₂
Hit stainless steel with it - boom, permanent white mark in milliseconds. Try the same settings on wood? Surface turns black and crusty, but no actual cut. It's the exact opposite of CO₂, which is both frustrating and fascinating.

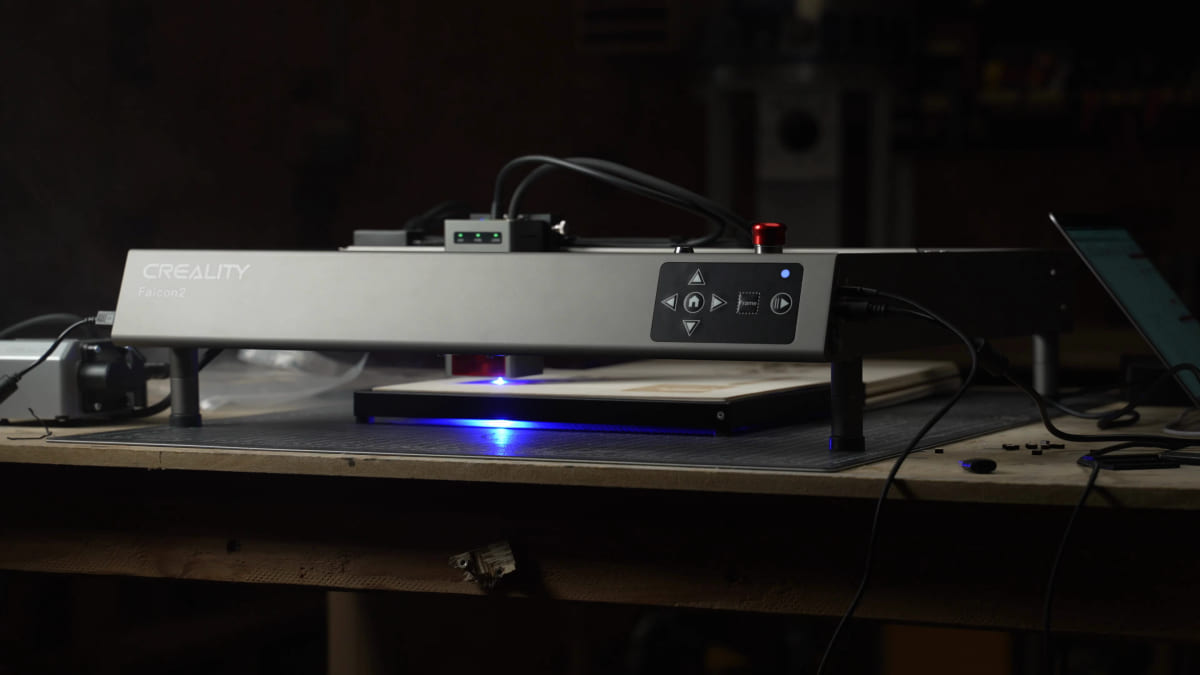

5-40W typical | The hobbyist's entry point
Dark wood: Engraving looks great
Leather: Beautiful detail work
Painted/coated: Removes dark coatings
Cardboard/paper: Works but slow compared to CO₂
Some plastics: Dark colors absorb well
Light wood: Needs many passes, not super clean
Metals: Mostly reflects, can mark with coating
Thick materials: Just doesn't have the juice
Transparent/reflective: Bounces off
Speed: Slow compared to CO₂ for cutting
My Atomstack X20 with 20W can engrave walnut beautifully - the contrast is gorgeous. Dark wood has compounds (lignin, tannins) that absorb blue light really well. But try cutting 1/4" birch plywood? You're making 15-20 passes and the edges look rough. Light wood just doesn't have the right stuff to absorb blue efficiently. It'll work for hobby stuff, but you'll understand why people upgrade to CO₂.
3-20W typical | The precision specialist
Everything: Works on almost any material
Glass: Actually engraves it (finally!)
Metals: Marks without heat damage
Wood/plastic: Ultra-precise detail
PCBs: Can mark without burning components
Cold ablation: Minimal heat-affected zone
Price: $3,000-15,000+ (ouch)
Speed: Slower than CO₂ for cutting
Power: Low wattage means thin materials only
Complexity: More maintenance, alignment critical
UV lasers are magic. I've seen them engrave glass wine bottles with detail that would make CO₂ and fiber lasers cry. They work by breaking molecular bonds directly instead of heating stuff up - it's called "cold ablation." But at $8K for an entry-level unit, most of us are just window shopping.
| Material Category | CO₂10,600nm | Fiber1,064nm | Blue Diode450nm | UV355nm |
|---|---|---|---|---|
Wood Products 9 materials | ||||
Acrylic 2 materials | ||||
Plastics 10 materials | ||||
Bare Metals 4 materials | ||||
Coated Metals 3 materials | ||||
Fabrics & Leather 7 materials | ||||
Rubber & Flexible 2 materials | ||||
Glass & Stone 3 materials | ||||
Composites 2 materials |
Match your laser type to your material. Don't fight physics:
Every laser has a personality. Use it for what it's good at, not what you wish it could do.

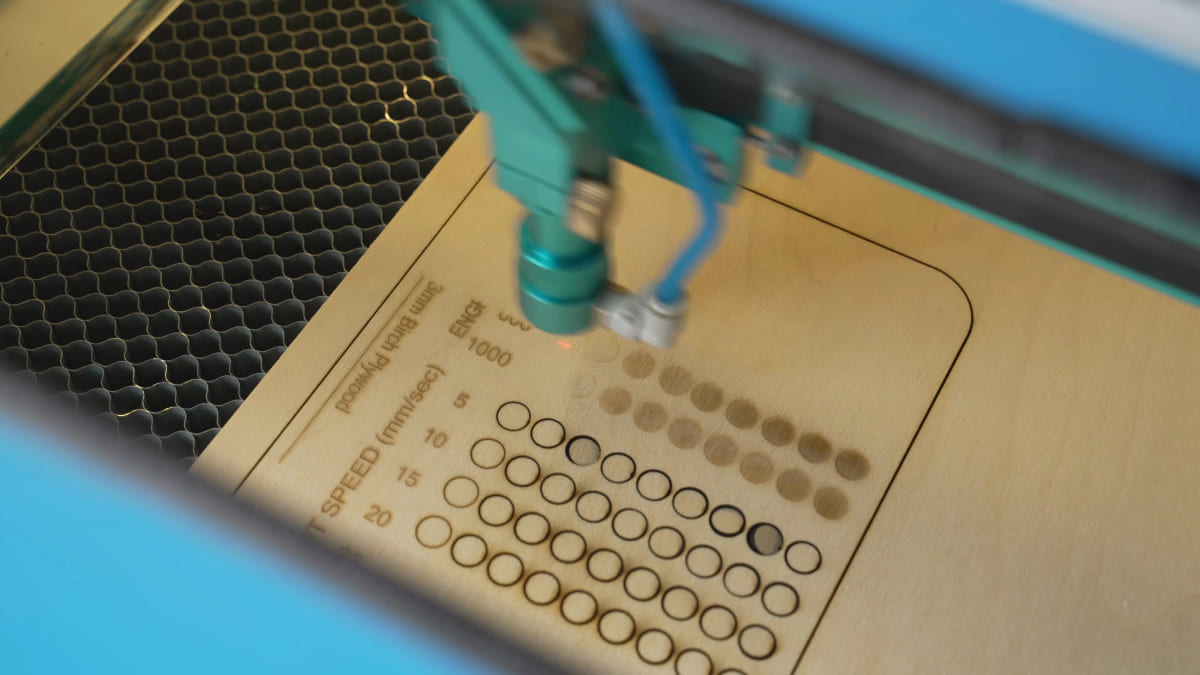

So I documented everything. Side by side. Same birch plywood.
My old 50W CO₂:
The "equivalent" 20W diode:
Same material. The diode was rated at 20W vs the CO₂'s 50W - so yeah, I expected it to be slower. Maybe need 2-3 passes instead of one.
Not 15× more passes with charred garbage edges.
Something was fundamentally different. Not just "less powerful." Different.
But why? Why does wood "see" infrared but ignore visible blue? Why does metal laugh at CO₂ but respect fiber? What's actually happening at the material level that makes these combinations work or fail?
Level 2
Before we talk about why lasers work on certain materials, you need to understand what a laser beam actually IS. Because "60 watts" doesn't tell the whole story - it's about how that power gets delivered.
Light isn't continuous - it comes in discrete packets called photons. Think of them like bullets of energy. Your laser beam is actually a stream of trillions of these photons hitting the material every second.
Each photon carries a specific amount of energy. And here's the critical part: wavelength determines how much energy each photon has. This is locked in by physics. You can't change it.
The Math (you don't need to memorize this):
Energy per photon = E = hc/λ

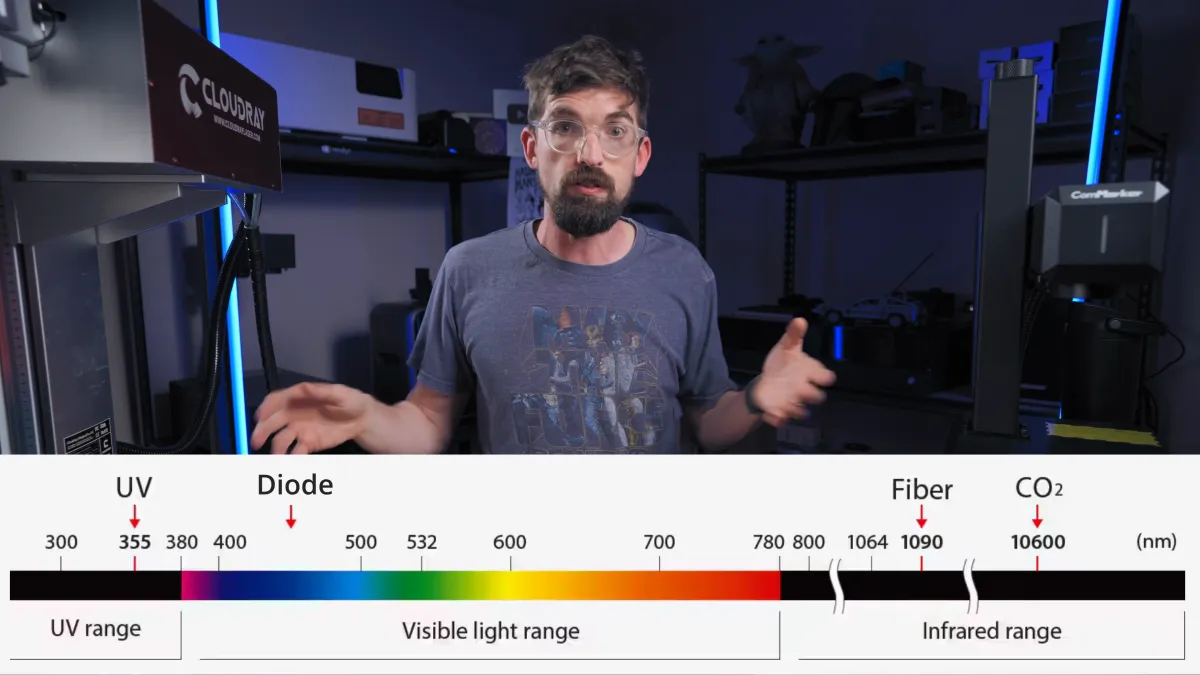

Where h = Planck's constant, c = speed of light, λ = wavelength. What matters: shorter wavelength = more energy per photon.
Here's what that means for the lasers in your shop:
CO₂ Laser
Wavelength: 10,600nm (infrared)
0.117 eV
per photon
Blue Diode Laser
Wavelength: 450nm (visible blue)
2.75 eV
per photon
UV Laser
Wavelength: 355nm (ultraviolet)
3.5 eV
per photon
UV photons have 30× more energy than CO₂ photons. So UV must be better for cutting, right? Not necessarily. Because power isn't about energy per photon - it's about total energy delivered per second.
When you see "60W" on a laser, that's 60 Joules of energy per second. Always. Doesn't matter if it's CO₂, fiber, diode, or UV. 60 Watts = 60 Joules/second.
But here's where it gets interesting: you can deliver that 60 Joules per second in different ways.
Two strategies to deliver the same power:
Strategy 1: Many Weak Photons
Send trillions of low-energy photons. Each one contributes a little bit, but there's SO MANY that it adds up to 60 Joules/second.
Strategy 2: Fewer Strong Photons
Send fewer but higher-energy photons. Each one packs a bigger punch, so you need fewer of them to hit 60 Joules/second.
The math always balances: Energy per photon × Number of photons per second = Total power (Watts)
Let's compare a 60W CO₂ laser to a 60W UV laser. Same power, totally different beams:
60W CO₂ Laser
Energy per photon: 0.117 eV (weak)
Photons per second: 3,201 quintillion
0.117 eV × 3,201 quintillion/sec ≈ 60W
Strategy: Overwhelm with quantity
60W UV Laser
Energy per photon: 3.5 eV (strong)
Photons per second: 107 quintillion
3.5 eV × 107 quintillion/sec ≈ 60W
Strategy: Precision with power
The Key Insight:
At the same wattage, CO₂ fires 30× more photons per second than UV. But each CO₂ photon is 30× weaker. The total energy delivered is identical - it's just delivered differently.
Adjust the wavelength and power to see how photon energy and quantity change. The math always balances: Energy per photon × Photons per second = Power (Watts)
Quick Select:
Energy Per Photon
0.117
electron volts (eV)
Photons Per Second
3,200
quintillion photons/second
Total Power Output
60W
always constant
Here's why understanding photon energy vs quantity is critical: materials are picky about what photon energy they can absorb.
If your photon energy matches what the material can absorb, then more photons = faster cutting. That's why CO₂ dominates on wood - wood molecules absorb 0.117 eV photons efficiently. Having 3,201 quintillion of them per second means the cut happens FAST.
But if your photon energy doesn't match (like blue diode on light wood), most of those photons bounce off or pass through. You're firing 600 trillion photons per second, but only 10-30% of them do any work. That's why it's slow and takes multiple passes.
The Analogy:
Low energy per photon isn't a weakness - it's a different strategy. Like shooting 1000 BBs vs 30 bullets. Same total energy, but BBs work great if the target absorbs BBs efficiently. Bullets work if you need to punch through directly. Wrong tool = wasted energy.
Power (Watts) doesn't tell you the whole story. What matters is the delivery strategy:
This is why a 40W CO₂ laser cuts wood better than a 40W diode laser even though diode photons have 23× more energy per photon. It's not about photon strength - it's about matching the material's absorption and having enough photons to do the job efficiently.
Okay so here's the actual numbers I calculated after learning this stuff:
My CO₂ laser (50W at 10,600nm) was cranking out 2.7 × 10²¹ photons per second. Each one carrying 0.117 eV.
The diode (20W at 450nm)? 4.5 × 10¹⁹ photons per second. Each one packing 2.75 eV.
Wait. The CO₂ was delivering 60 times more photons. But each photon had 23× less energy.
The marketing materials compared watts. "20W is 40% of 50W, so expect roughly 40% of the cutting speed." That math checks out, right?
Except it completely ignores how those photons interact with wood. The diode's high-energy photons sound impressive - until you realize wood doesn't care about impressive. It cares about wavelength.
They listed watts because watts sell. They didn't list wavelength because then you'd ask questions.
But why are materials picky? Why does wood absorb 0.117 eV photons efficiently but not 2.75 eV photons? What's actually inside wood that determines which photon energies work? That's where we need to look at chemistry.
Level 3
When I was learning this stuff, I kept seeing terms like "covalent bonds" and "resonance" without understanding the basics. You know what helped? Treating materials like LEGO bricks. Before you can build something, you need to know what pieces you're working with. That's what this level is - the parts inventory.
The Core Insight:
Wood and metal aren't just "different materials" - they're built from completely different parts. Different molecules, different chemical formulas, different structures. Like comparing PVC pipe to copper pipe. Same job (move water), totally different blueprints. That's why they need different lasers.
Let's start with wood since that's what most of us laser. When you look at wood at the molecular level, you see chains of three main atoms repeating over and over:
(C₆H₁₀O₅)ₙ
That's cellulose - the main component of wood. Those subscript numbers tell you the recipe: 6 carbon atoms, 10 hydrogen atoms, 5 oxygen atoms, repeated thousands of times in long chains.
Carbon (C): The backbone. Carbon chains form the structure of basically all organic materials.
Oxygen (O): Connects to the carbon backbone. Notice those C-O connections everywhere? Remember that - it's gonna be critical in Level 4.
Hydrogen (H): Hangs off the sides of the chain, fills in the gaps.
So when you're cutting a piece of oak or acrylic or leather, you're working with long chains of carbon-oxygen-hydrogen atoms. The exact arrangement varies (acrylic has different ratios, leather has nitrogen too), but they're all variations on the same theme: organic materials are C-O-H molecules.
That's the inventory for Part A. Carbon-oxygen chains with hydrogen attached. Simple as that.
After spending 6 years working with wood and then getting into metal, I assumed the chemistry would be kind of similar. Nope. Metals are built on a completely different blueprint.
Steel: Mostly iron atoms (Fe) arranged in a crystal lattice. That's it. One type of atom, packed together in an orderly grid.
Aluminum: Just aluminum atoms (Al) in a different crystal arrangement.
Copper: Copper atoms (Cu) in yet another crystal pattern.
See the pattern? Metals are just one type of atom (or maybe two in alloys), arranged in ordered structures. No long chains, no complex molecules. Just atoms of the same element stacked together.
Compare that to wood: carbon chains with oxygen and hydrogen attached, creating these complex molecular structures. Metal? Just iron atoms. Or aluminum atoms. Or copper atoms. Way simpler composition.
That's the inventory for Part B. Single-element atoms in ordered grids.
Glass sits somewhere between organics and metals. It's made of silicon (Si) and oxygen (O) atoms connected in a rigid 3D network. Not chains like wood, not single-element grids like metal - a hybrid structure.
SiO₂
That's silicon dioxide - the main component of glass. One silicon atom connected to two oxygen atoms, repeated in a 3D network extending in all directions. Picture a jungle gym where every joint is a silicon atom and every bar is an oxygen connection.
Key difference from wood: Si-O connections instead of C-O connections. Different atoms means different chemistry in Level 4.
Key difference from metal: Two elements (Si and O) forming molecular connections, not a single element in a grid.
That's the inventory for Part C. Silicon-oxygen networks. Inorganic (no carbon), but molecular (not pure metal).
That's it. Three types of materials based on what they're made of:
Think of it like knowing what's in your parts bins before you start building. Wood has carbon-oxygen molecules. Metal has pure iron atoms. Glass has silicon-oxygen structures. Different ingredients.
All 30 test sheets. Same exact Baltic birch plywood. Same supplier. Same batch, probably.
Which means every single sheet was roughly 75% cellulose (C₆H₁₀O₅)ₙ, 20% lignin, 5% whatever else (moisture, extractives, wood shop dust...).
Thousands of identical C-O bonds. Thousands of identical C-H bonds. Same molecules every time.
CO₂ laser? Cut clean. Every sheet.
Diode laser? Struggled. Every sheet.
Not "sometimes it worked" or "depends on the grain." Every. Single. Time. The diode failed where the CO₂ succeeded, on chemically identical material.
The wood molecules don't read marketing materials. They just sit there being cellulose, waiting for the right wavelength.
But why does the composition matter? So what if wood is C-O-H and metal is just Fe atoms? How does that relate to lasers?
Here's the thing: those atoms aren't just sitting there - they're connected to each other. And the way they connect determines everything about how light interacts with them. That's what Level 4 is about.
Level 4
In Level 3, you saw what materials are made of - C-O-H chains in wood, Fe atoms in steel. But what IS an atom? And how do those atoms stick together? This is the foundation for understanding why different lasers work on different materials.
The Core Insight:
Everything about lasers comes down to one fact: electrons exist at specific energy levels, like steps on a ladder. You can stand on step 1, 2, or 3, but not step 2.5. How atoms share those electrons determines what kind of connection they make - and that determines which wavelengths can break them.
From Level 3, you know wood is made of carbon, oxygen, and hydrogen atoms. But what ARE those atoms? Let's zoom in.
Every atom has a nucleus in the center - a tiny, dense ball of protons (+) and neutrons (neutral). The number of protons is what defines the element.
Carbon: 6 protons in the nucleus
Oxygen: 8 protons in the nucleus
Iron: 26 protons in the nucleus
That's how the periodic table works - it's just counting protons. Element 6 is carbon, element 8 is oxygen, element 26 is iron. Different number of protons = different element.
Around that nucleus, you've got electrons (-). And here's the most important thing to understand about electrons - and honestly, about all of laser physics:
Electrons can't exist at any random distance from the nucleus. They can only exist at specific energy levels.
Think of electron energy levels like rungs on a ladder. An electron can stand on rung 1, rung 2, or rung 3. But it cannot stand between rungs. There's no "rung 2.5" - you're either on rung 2 or rung 3, nothing in between.
We call these energy levels "shells" - Shell 1 (lowest energy, closest to nucleus), Shell 2 (higher energy, further out), Shell 3 (even higher energy, even further out). Same thing, just a name.
It's not a smooth ramp. It's discrete steps. This is how electrons actually work.
Shell 1: Closest to nucleus, holds max 2 electrons
Shell 2: Further out, holds max 8 electrons
Shell 3: Even further, holds max 8 electrons
Electrons fill from the inside out. Shell 1 fills first, then Shell 2, then Shell 3.
Carbon (6 electrons total): 2 in Shell 1 (full), 4 in Shell 2 (wants 4 more to fill it)
Oxygen (8 electrons total): 2 in Shell 1 (full), 6 in Shell 2 (wants 2 more to fill it)
Atoms really "want" their outermost shell full - that's the stable configuration. This drive to fill the outer shell is what makes atoms stick together and form bonds.
This isn't theoretical - it's observable reality. When you heat metal until it glows red, you're seeing electrons jump from one energy level to another, releasing specific colors of light. Red = specific energy gap. Blue = different energy gap. Not random - precise.
For an electron to jump from one level to another, it needs to absorb or release energy. And that energy has to EXACTLY match the gap between levels.
Light = photons = packets of energy. Different wavelengths = different energy amounts. Infrared photons (low energy), visible photons (medium energy), UV photons (high energy).
If a photon's energy exactly matches an energy gap, the electron absorbs it and jumps up a level. If the photon's energy doesn't match? It passes right through or bounces off. Can't use it.
This is why wavelength matters. It's not arbitrary - it's physics. Each material has specific energy gaps, and only photons with matching energies can interact. CO₂ lasers work on wood because their photon energy matches C-O bond gaps. Blue diodes work on some materials but not others because of different gaps.
(If you're wondering WHY electrons behave this way - why discrete levels instead of continuous - that's quantum mechanics, which we'll cover in Level 8. For now, just know this is how they work.)
Remember, atoms "want" their outer shell full. Carbon has 4 electrons in its outer shell (wants 8). Oxygen has 6 (wants 8). So they make a deal: share electrons. Both atoms get to "count" the shared electrons as their own.
In a C=O double bond, carbon and oxygen share 4 electrons (2 pairs):
• Carbon's 4 electrons + 4 shared = feels like 8 (full outer shell)
• Oxygen's 6 electrons + 2 shared = feels like 8 (full outer shell)
• Both atoms happy
Those shared electrons sit in the space between the two nuclei, attracted to both. That's the glue. That's a covalent bond - electrons locked between two specific atoms.
Wood is made of covalent bonds: C-O bonds, O-H bonds, C-C bonds. Electrons shared between pairs of atoms, creating molecular chains.
Metals work completely differently. Iron atoms don't pair up and share electrons between two atoms. Instead, ALL the iron atoms give up their outer electrons to a communal pool.
Picture a lattice of positive iron ions (Fe⁺) with a sea of negative electrons flowing between them. Those electrons aren't locked to any specific atom - they're free to move anywhere in the entire metal.
This is a metallic bond: Electrons shared communally by all atoms, not locked between pairs.
Why metals behave differently: Free-flowing electrons = electrical conduction. Free-flowing electrons = thermal conduction. Free-flowing electrons = shiny surface. The electron sea creates all those metal properties.
So you've got two fundamentally different connection types: covalent (electrons locked between specific atoms) and metallic (electrons flowing freely between ALL atoms). Different structures, different properties - and as you'll see in Level 5, different ways that light can interact with them.
Now here's where it all comes together. Remember from earlier: electrons exist at specific energy levels (the ladder). Different types of bonds create different energy gaps between those levels. And those gaps determine which wavelengths can interact.
A typical C=O bond in cellulose has electrons tightly locked between carbon and oxygen. The gap between the bonding state (electrons doing their job) and the excited state (electrons with more energy) is large.
Gap size: About 0.117 eV (electron volts)
Photon match: Infrared light (10,600 nm wavelength = CO₂ laser)
This is why CO₂ lasers work on wood - their photon energy exactly matches the C-O bond energy gap.
Some molecules have special arrangements - alternating single and double bonds (called conjugated systems). Lignin in dark wood, tannins in walnut, natural dyes. These spread electrons across multiple atoms instead of locking them tightly between two.
Gap size: About 2.75 eV (smaller gap than C-O)
Photon match: Visible blue light (450 nm = blue diode laser)
This is why dark wood (more lignin = more chromophores) absorbs blue light better than light wood.
Remember the electron sea in metals? Those free electrons don't have discrete gaps like bonds do. Their energy levels overlap into continuous bands - no specific gaps, just a range of possible energies.
Gap size: Essentially zero (continuous band)
Photon match: Any wavelength - infrared, visible, UV, whatever
This is why metals can absorb any laser wavelength. No specific energy gap to match - the electrons will take any energy you give them.
So different bond types = different energy gaps = different wavelengths needed. That's the foundation. In Level 5, we'll talk about HOW those photons actually break the bonds once they're absorbed.
This is where it clicked. The C-O bonds in birch have an energy gap of 0.117 eV between vibrational states. That's the gap. That's what you need to match.
CO₂ laser photons? 0.117 eV. Perfect fit.
My diode photons? 2.75 eV.
It's like trying to use a $5 bill in a vending machine that only takes quarters. You're not broke - you've got money. But it's the wrong denomination. The machine literally can't accept it.
I spent 30 sheets of plywood trying to "tune the settings" - adjusting speed, power, focus, air assist. That's like waving the $5 bill at the vending machine slower. Or faster. Or from different angles.
Doesn't matter. Wrong energy gap.
The spec sheets compared wattage because most people don't know to ask about photon energy. And if you don't know to ask, you wind up like me - burning through test materials wondering why "more power" isn't working.
Alright, foundation laid. You know atoms have electrons at specific energy levels (the ladder). You know different bonds create different energy gaps. C-O bonds need infrared photons. Chromophores need visible photons. Metals accept any photon.
But we haven't actually broken anything yet. Absorbing a photon is one thing - removing material is another. That's where the mechanisms diverge. Level 5.
Level 5
Okay, let's bring it all together:
Here's the thing - there are two fundamentally different ways to remove material. With wood, you're breaking chemical bonds, creating new substances (CO₂ and water vapor). With metal, you're causing a phase change - atoms separate but stay the same element. Same goal (remove material), completely different physics.
The Key Distinction:
Chemical change (organics): Those C-O-H bonds from Level 3 break → atoms rearrange into new molecules (CO₂, H₂O, char). Carbon becomes carbon dioxide. Irreversible.
Physical change (metals): Those Fe atoms from Level 3 stay Fe atoms, just change state (solid → liquid → gas). Like boiling water - H₂O stays H₂O. Reversible.
This is the gold standard for efficiency. Remember those C-O bonds from Level 4 with their energy gaps matching infrared photons? Now let's talk about HOW those photons actually add energy to the bond.
Remember from Level 4, C-O bonds share electrons. But here's the detail we skipped: oxygen pulls those shared electrons toward itself harder than carbon does (oxygen is more electronegative).
Result? The electron cloud sits closer to oxygen. That makes oxygen slightly negative (δ-) and carbon slightly positive (δ+). You've got a dipole - a + end and a - end.
Why this matters: Light is an electromagnetic wave - an oscillating electric field moving through space. When that oscillating field hits a dipole, it can push and pull on the charges. Push the negative end, pull the positive end, oscillate them back and forth.
Those shared electrons between carbon and oxygen don't just sit there - they create a spring-like connection. Push the atoms together? Electron cloud compresses, repels. Pull them apart? Electrons pull them back together.
Like any spring, the bond has a natural frequency at which it likes to vibrate. For C=O bonds, that's about 28 THz (28 trillion vibrations per second). Not random - determined by atomic mass and electron glue strength.
Resonance: Push a swing at its natural frequency and you can really get it going. Same here. CO₂ laser photons oscillate at 28 THz - exactly matching the C=O natural frequency. Perfect resonance = efficient energy transfer.
Step 1: CO₂ laser photon (10,600nm, 28 THz) hits a C-O bond in wood
Step 2: That C-O bond naturally vibrates at... 28 THz. Perfect match!
Step 3: The photon's oscillating electric field pushes the electrons in the bond back and forth, in sync with the natural vibration
Step 4: With each photon, the vibration amplitude increases (like pushing a swing at exactly the right moment)
Step 5: After millions of photons in a few milliseconds, the atoms are vibrating so violently they swing too far apart - the electron cloud can't reach both nuclei anymore
Step 6: Bond breaks. Atoms fly apart as vapor.
This is EFFICIENT because you're adding energy at exactly the right frequency. Each photon transfers ~85% of its energy to the bond. It's like hitting a bell with perfect timing - the sound builds and builds. This is why a 60-watt CO₂ laser cuts wood clean while a 60-watt fiber laser just chars the surface.
Key point: This is the THERMAL path - you're building up vibrational energy (heat) until bonds break. It takes many photons, but each one contributes efficiently because of resonance.
For years I thought blue diode lasers struggled on wood because they just didn't have enough energy or the wrong frequency. Turns out it's way more interesting than that. Wood is actually TWO different materials from a blue laser's perspective - the stuff that absorbs blue light, and the stuff that doesn't.
Type 1: Chromophores (10-50% of wood)
These are molecules with special structures - lignin, tannins, the stuff that makes heartwood dark. They have what's called "conjugated systems" - alternating double bonds that create electron clouds spread over multiple atoms. Think of them as molecules with the right antenna to receive blue light.
What blue light does: The 2.75 eV photon kicks an electron from a bonding orbital (π) to an excited orbital (π*). That electron hangs out there for nanoseconds, then drops back down. But here's the key - in dense wood, it doesn't release another photon. It releases HEAT instead (non-radiative relaxation). The electron's position changes as it drops, yanking nuclei around, creating vibrations that spread as heat.
Result: Efficient absorption, converts to heat, bonds eventually break from accumulated energy.
Type 2: Plain C-O and C-H bonds (50-90% of wood)
Your basic cellulose structure. These bonds have electrons locked in sigma (σ) orbitals - tightly bound, no fancy conjugated systems.
What blue light tries to do: The photon DOES interact with these bonds, but it's like that swing analogy - you're pushing at the wrong frequency. The bond vibrates at 28 THz, blue light oscillates at 670 THz. Sometimes you push in phase and add energy, sometimes you push out of phase and cancel it out. Net result? Maybe 1-5% of the energy transfers.
Plus, the photon doesn't have enough energy to kick σ electrons to σ* orbitals (would need ~5-6 eV, you only have 2.75 eV). So it can't cause electronic transitions in these bonds.
Result: Most blue light reflects or passes through these bonds. Inefficient.
Light wood (pine, birch, maple): Only 10-30% chromophores. That means 70-90% of the blue light hits molecules that can't absorb it efficiently. Reflects off, passes through, wastes energy. You wind up needing 15-20 passes to cut through.
Dark wood (walnut, mahogany): 40-50% chromophores. More molecules with the right antenna to receive blue light. Better absorption, faster cutting. Still not as good as CO₂ (which works on 90%+ of molecules), but way better than light wood.
Stained/painted surfaces: Paint is FULL of chromophores - that's what makes it colored! You're looking at 60-80% absorption. This is why my Atomstack X20 absolutely rips through painted wood but struggles on raw pine.
So when you see a blue diode laser slowly burning its way through light-colored plywood, that's what's happening - it's only finding chromophores in 1 out of every 5-10 molecules. The rest of the wood is basically invisible to blue light.
This is why my 20W Atomstack X20 takes 15-20 passes to cut through 1/4" birch plywood that a 40W CO₂ laser would cut in one pass. The CO₂ laser talks to EVERY molecule (vibrational resonance works on all organic bonds). The diode laser only talks to chromophores, and light wood doesn't have many.
The confusion: People see "2.75 eV > 0.117 eV" and think the diode should work better. But it's not about energy per photon - it's about what percentage of your material can actually absorb that energy. CO₂ works on 90%+ of wood molecules. Blue diode works on 10-50%, depending on chromophore content. That's the difference.
UV lasers are different animals. They don't mess around with vibrations or resonance. They just straight-up break bonds with single photons. It's called "cold ablation" because you don't need to heat the whole area - bonds break directly.
UV photon arrives: 355nm wavelength, 3.5 eV of energy
Hits a C-O bond: That bond has electrons in a bonding orbital (holding atoms together)
Single photon kicks electron: 3.5 eV is enough to promote that electron from bonding orbital → antibonding orbital (or just ionize it completely)
Bond breaks INSTANTLY: Because the electron is no longer doing its job. It's not bonding anymore - it's in an antibonding state or completely gone.
Atoms separate: No electron glue between them, they fly apart. No bulk heating required.
This is why UV lasers can mark glass (which is transparent to CO₂ and fiber) and why they work on basically everything. They have enough energy per photon to directly break most chemical bonds, regardless of vibrational frequencies or resonance.
The downside? UV lasers are expensive ($3K-15K), low power (3-20W typical), and require special optics. But for ultra-precision work with minimal heat damage, nothing else comes close.
Critical difference from thermal paths: CO₂ and diode both accumulate energy over millions of photons to break bonds. UV breaks bonds with SINGLE photons. Different physics, different results.
When you laser-mark steel, you're not breaking bonds like you do with wood. Iron atoms stay iron atoms. They just change state - solid to liquid to gas. It's a phase change, not a chemical reaction. That's a fundamentally different process.
Wood (Chemical): When CO₂ laser hits wood, bonds break. Carbon-oxygen-hydrogen chains become CO₂ + H₂O + char. New substances. Can't reverse it - you can't turn smoke back into wood. The atoms literally rearrange into new molecules.
Metal (Physical): When fiber laser hits steel, iron atoms stay iron. They just go from solid → liquid → gas (vapor). Same Fe atoms, different state. Like boiling water - H₂O stays H₂O, just changes phase. You could theoretically re-condense the iron vapor back to solid.
Why this matters: Different physics. Wood needs photons that resonate with bonds (CO₂ at 28 THz). Metal just needs HEAT - any wavelength works if you deliver it fast enough. That's a totally different challenge.
So the question with metal isn't "what wavelength resonates?" - free electrons absorb everything. The question is: "How do you deliver heat faster than it can diffuse away?" That's the pulsing trick.
Metals have free electrons floating in that electron sea we talked about. These electrons can absorb photons at basically ANY wavelength - they're not picky. CO₂, fiber, diode - free electrons will absorb them all.
When a photon hits: The free electron absorbs it and gains kinetic energy (starts moving faster). That fast electron then collides with the metal lattice, transferring energy as heat.
The problem: That heat diffuses through the metal FAST. In steel, thermal diffusion time is about 100 nanoseconds. By the time your next photon arrives, the energy from the first one is already spreading throughout the entire workpiece.
Why CO₂ fails: CO₂ lasers are typically continuous wave (CW) or have long pulses. The time between photon arrivals is longer than the thermal diffusion time. You can't build up heat faster than it spreads.
The fiber laser trick: Fiber lasers can pulse VERY short - 2 to 200 nanoseconds. They dump all their energy in a time shorter than thermal diffusion. Peak power during that pulse is insanely high (kilowatts to megawatts), even if average power is only 20-60W.
Result: You heat a tiny spot faster than the heat can escape. Temperature spikes, metal vaporizes, you get your mark.
This is why a 30W fiber laser can mark steel but a 100W CO₂ laser bounces off. It's not about average power or photon energy - it's about PULSING. It's about delivering energy faster than thermal diffusion can steal it away.
For YEARS I thought it was because diode photons didn't have enough energy. Wrong. Blue diode lasers (450nm, 2.75 eV) have way more energy per photon than fiber lasers (1064nm, 1.17 eV).
The real reason: diode lasers can't pulse effectively. They're typically continuous wave or have very long pulses (milliseconds, not nanoseconds). So even though the free electrons absorb the energy just fine, thermal diffusion wins. The heat spreads away before you can build up enough to vaporize metal.
Pulsing is the secret. Not photon energy. That's the critical insight.
So here's what's really going on with all those laser-material combinations:
CO₂ on Wood: Path 1 (vibrational resonance) - Perfect frequency match, works on 90%+ of molecules, super efficient
Diode on Dark Wood: Path 2 (chromophore absorption) - Works on 40-50% of molecules (lignin/tannins), decent absorption
Diode on Light Wood: Path 2 (limited chromophores) - Only 10-30% of molecules can absorb, 70-90% wasted, inefficient
UV on Wood: Path 3 (photochemical) - Direct bond breaking, single photons, cold ablation
Fiber on Metal: Free electron heating + short pulses (2-200ns) beat thermal diffusion
CO₂ on Metal: Free electrons absorb but can't pulse short enough, heat diffuses in 100ns
Diode on Metal: Free electrons absorb but can't pulse short enough, heat diffuses in 100ns
It's not about which laser is "more powerful." It's about matching the physics to the material. Resonance for organics (CO₂). Selective absorption for chromophores (diode). Pulsing for metals (fiber). Direct kicks for everything else (UV).
Three distinct mechanisms explain all laser-material combinations:
Mechanism 1 - Resonant Vibrational (CO₂ on organics): Laser frequency matches bond vibration frequency. Efficient, clean, fast. Works on ALL organic bonds - wood, acrylic, leather regardless of color. ~90% absorption.
Mechanism 2 - Chromophore Absorption (Diode on dark materials): Blue photons excite electrons in chromophores (lignin, tannins) via π→π* transitions. Electrons drop back down, release heat through non-radiative relaxation. Only works on 10-50% of wood molecules (chromophore content). Dark wood has more chromophores = better absorption. Plain C-O bonds interact out-of-phase, wasting 50-90% of the energy.
Mechanism 3 - Direct Bond Breaking (UV on anything): High-energy UV photons directly break molecular bonds without heating. Cold ablation. Works on glass, ceramics, materials transparent to other wavelengths.
Metals are special: Free electron sea diffuses heat in 100 nanoseconds. Solution: pulse the laser (2-200ns) to dump energy faster than it can spread. This is why pulsed fiber lasers mark metal but continuous diodes can't.
So after burning through all those test sheets, I finally understood what was happening:
The CO₂ laser was hitting wood with 28 THz photons. The C-O bonds in cellulose vibrate at... 28 THz. Resonance. Like pushing a swing at exactly the right rhythm - energy accumulates, bonds vibrate harder and harder until they snap. Clean break. Minimal wasted heat.
The diode laser was blasting wood with 667 THz photons. C-O bonds vibrate at 28 THz. No resonance. Most of the energy just bounces off (elastic scattering). Only the lignin chromophores could absorb some of it (~5% coupling efficiency), which turned into heat, which spread everywhere, which charred the cellulose.
It's not "one laser is better." It's "two completely different mechanisms."
Saying "20W diode cuts like 50W CO₂" is like saying "a 20lb hammer works like a 50lb saw because they both apply force to wood."
Sure. Technically true. Both remove material. But if you need clean cuts and you show up with a hammer, you're gonna have a bad time. Doesn't matter how hard you swing it.
But what does this actually look like? How does a CO₂ photon travel from the laser tube, hit a C-O bond, resonate with it, and end up cutting wood? What's the complete journey from start to finish?
Level 6
You know what bonds break and why. Now let's understand how each laser type creates its photons in the first place. This is what's happening inside that laser head before any cutting starts.
Select a laser type to explore how it generates photons:
A CO₂ laser tube is a sealed glass tube filled with gas - mostly CO₂, but also nitrogen (N₂) and helium (He). At each end of the tube is a metal electrode connected to high voltage (think 20,000+ volts).
The tube also has mirrors at both ends. One mirror is 100% reflective (keeps all light inside), the other lets about 10-20% of light through (that's your laser beam).
When you turn on the laser, high voltage between the electrodes rips electrons off gas molecules. This creates a glowing plasma - free electrons zipping around at high speed.
Why this matters: These free electrons are like tiny billiard balls that can smash into gas molecules and transfer energy. That's how we pump energy into the system.
CO₂ is a linear molecule: O=C=O. Those bonds aren't equal partnerships though.
Look at the periodic table: Carbon has 6 protons, oxygen has 8 protons. When they share electrons in a bond, oxygen's extra protons pull those electrons closer. Simple as that.
This creates an uneven charge distribution - oxygen ends are slightly negative, carbon center is slightly positive. Free electrons can push on this imbalance.
All molecules vibrate from heat - atoms jiggle back and forth like springs. But CO₂ can vibrate HARDER when electrons push on it, because those electrons have something to grab onto (the charge imbalance).
The molecule can be in different vibration states: gentle vibration (v=0), vigorous vibration (v=1), super vigorous (v=2), etc. The difference between v=0 and v=1 is where we store energy in a CO₂ laser.
Free electrons can hit CO₂ molecules directly and pump them to v=1. But there's a more efficient path using nitrogen (N₂).
Why add nitrogen? N₂ is lighter than CO₂ (molecular weight 28 vs 44), so it's easier for electrons to get it vibrating. Think of it like pushing a shopping cart - lighter cart accelerates easier.
Even better: N₂'s vibrational energy level happens to match CO₂'s v=1 state almost perfectly. When excited N₂ collides with CO₂, it's like hitting one tuning fork with another - the vibration transfers cleanly and efficiently.
The result: Electrons → N₂ → CO₂ is more efficient than electrons → CO₂ directly. This builds up a population of CO₂ molecules all vibrating at v=1 (high energy state).
Population inversion - the critical condition: Normally in any gas, most molecules are in the ground state (v=0). Maybe 1 in a million is excited (v=1). That's the "normal" population distribution.
But in a working laser, we flip that around. We pump energy in so hard that MORE molecules are at v=1 than v=0. The population is inverted - more excited molecules than ground state molecules.
Why does this matter? When a photon travels through the gas, it can do one of two things:
If there are more v=0 molecules (normal), photons get absorbed faster than they multiply. The light dies out.
If there are more v=1 molecules (inverted), photons trigger more drops than get absorbed. The light grows exponentially. That's your laser beam.
Population inversion is the difference between a light bulb (random photons) and a laser (amplified, coherent beam).
Here's the key thing: a CO₂ molecule in the v=1 state can't just gradually slow down to v=0. It has to suddenly drop - like falling off a step. One moment it's vibrating vigorously, the next moment it's vibrating gently.
Energy has to be conserved. The molecule lost energy (the difference between v=1 and v=0). That energy can't just disappear. It has to go somewhere.
Where does it go? It gets released as a photon. A packet of light carrying exactly that energy difference - which works out to 10.6 μm infrared light.
Eventually, one molecule drops from v=1 → v=0 randomly, creating the first photon.
The magic happens next: That photon flies through the gas and encounters another excited CO₂ molecule. Instead of being absorbed, it triggers that molecule to also drop from v=1 → v=0, creating a SECOND identical photon traveling in the same direction.
Now you have 2 photons. They each trigger more molecules → 4 photons → 8 → 16. This is stimulated emission - photons creating copies of themselves.
Remember those mirrors at both ends? Photons bounce back and forth between them, passing through the excited gas hundreds of times. Each pass triggers more stimulated emission.
Only photons traveling perfectly parallel to the tube axis keep bouncing between mirrors. Photons going at an angle hit the tube wall and get absorbed. The mirrors filter for perfectly aligned photons.
The partially-reflective mirror lets some photons through on each pass - but only the perfectly aligned ones. That's your laser beam: billions of identical photons all traveling in exactly the same direction.
What comes out: 10.6 μm infrared beam
Why it's a beam: Mirror geometry filters for parallel photons only
Why photons are identical: All created by same v=1→v=0 transition in CO₂
Energy per photon: 0.117 eV (the exact difference between v=1 and v=0)
CO₂ lasers: Vibrational transitions in gas molecules. Energy stored in nuclear motion. This is why they match organic materials so well - same quantum mechanism.
Diode lasers: Electronic transitions in semiconductors. Energy in electron band gaps. Cheap and compact, but wrong wavelength for most materials.
Fiber lasers: Electronic transitions in rare earth ions. Can be pulsed at nanosecond timescales to beat thermal diffusion in metals.
UV lasers: Frequency-tripled fiber lasers. High photon energy breaks bonds directly without bulk heating - true "cold processing."
So I published the review. "Diodes can't match CO₂ on wood." Showed my test results. Explained the physics.
And oh man, the comments.
"Just tune the wavelength to 10.6 microns."
"There's gotta be a setting."
"You obviously don't know how to use it."
Look. I get it. I wanted there to be a setting. I spent $600 on diode lasers trying to make them work. But wavelength isn't like speed or power. You can't just "adjust" it.
The diode produces 450nm blue light because gallium-nitride has a 2.75 eV bandgap. That's not a setting. That's the atomic structure of the semiconductor crystal.
The CO₂ produces 10,600nm infrared because that's the energy released when CO₂ molecules drop from the 001 vibrational state to the 100 state. Also not a setting. That's molecular quantum mechanics.
Wavelength is locked by physics. Not software.
If the marketing had been honest - "20W at 450nm" vs "50W at 10,600nm" - people could've googled "what wavelength cuts wood" before buying. But "watts" sounds simple. And simple sells.
Level 7
Alright, you've got all the pieces now:
Now let's put it all together. I'm going to walk you through exactly what happens when you hit "start" on your laser - from the moment the photon gets created inside the tube to watching the material separate. No more theory, just the step-by-step sequence of what's actually happening.
Select a laser-material combination to see the complete process:
Same vibrational mechanism both directions. 90%+ absorption efficiency.
Looking back, I can trace exactly what was happening from wall power to cut wood:
The CO₂ laser (the one that worked):
Plug in → Electrical discharge excites N₂ gas → Energy transfers to CO₂ molecules → They jump to the 001 vibrational state → Drop to 100 state → Release 10.6μm photons → Those photons hit cellulose in the wood → Match the C-O bond vibration frequency perfectly → Resonance → Bonds accumulate energy → Break cleanly → Material vaporizes
The diode laser (what the marketing said would work):
Plug in → Current flows through GaN semiconductor → Electrons jump the 2.75 eV bandgap → Release 450nm photons → Those photons hit cellulose → Don't match any vibrational frequencies → Most energy scatters back → Only lignin chromophores absorb a fraction → That becomes heat → Heat spreads → Thermal char
Both start with "plug it in." Both end with "wood gets marked." Completely different physics in between.
The marketing folks saw "electricity → modified wood" and called it the same. I tested 30 sheets to learn they were wrong.
But why the sudden drops? We kept saying electrons or molecules can't graduallylose energy - they have to suddenly drop from one state to another. Why? What's stopping them from slowly releasing energy like a ball rolling down a hill?
And for that matter, where does the octet rule come from? Why 8 electrons? Why do atoms "want" specific configurations? Who decided these numbers?
This is the final "why" - the one that goes all the way down to quantum mechanics. And this is where even physicists eventually say "the math works, we don't know why reality is like this."
Level 8
Throughout this guide, we kept hitting the same weird fact: energy doesn't change gradually. CO₂ molecules can't slowly decrease their vibration from v=1 to v=0. Electrons in diode lasers can't gently lower their energy. They have to suddenly jump from one state to another, and when they do, a photon appears.
That's quantum mechanics. Energy is quantized - it comes in discrete chunks, not smooth gradients. This same weirdness explains why atoms want 8 electrons, why molecules vibrate at specific frequencies, why lasers work at all.
Seriously. You've already got everything you need to understand why your CO₂ laser cuts wood and why diode lasers suck at it. You could stop right here and you'd know more than 99% of people who own lasers.
But if you're still reading, you're probably the kind of person who can't let go of these questions:
All of these "why" questions have the same answer: because electrons are waves, and waves trapped in confined spaces can only exist in specific patterns, and those patterns have specific energies.
Fair warning:
This section goes into quantum mechanics. Not the math (I'm not a sadist), but the concepts. It's weird. It'll make you uncomfortable. That's normal - it makes everyone uncomfortable, including the physicists who discovered it.
If you just want the short answer: electrons and molecules are waves trapped in boundaries. Waves can only exist in specific patterns when confined to a space. Those patterns have specific energies. An electron can't have an in-between energy any more than a guitar string can vibrate at a frequency between its allowed notes.
If that's enough, great. You're done. But if you want to understand what an "electron wave" is and why that matters for your laser cutter, let's keep going.
Before we get into quantum weirdness, let's talk about something you can see and touch: waves in confined spaces.
Fill a baking pan with water. Now slosh it back and forth at random speeds. What happens? The water jiggles around but nothing dramatic happens. Waves form, bounce off the sides, interfere with each other, mostly cancel out.
But find exactly the right rhythm - the right frequency - and suddenly you get HUGE standing waves. The water builds up at the edges, crashes down in the middle, synchronized perfectly. Keep pushing at that rhythm and the wave gets bigger and bigger.
That's a mode - a wave pattern that reinforces itself because it fits perfectly in the space. The pan's size determines which frequencies work. A bigger pan = different frequencies, but the principle is the same: only certain patterns survive.
Try to slosh at a slightly different frequency - between two modes - and the water fights you. Your push is sometimes in-phase (adding energy) and sometimes out-of-phase (taking energy back). The energy sloshes back and forth between the water and your hand. The wave doesn't build up.
This is the key insight:
Off-mode energy doesn't disappear - it just bounces back. Like pushing a swing at the wrong rhythm. The wave pattern doesn't match, so energy can't get trapped. It sloshes back and forth.
Same thing happens with guitar strings. A string can only vibrate at specific frequencies:
Try to make it vibrate at a frequency between those? The wave cancels itself out. Only the patterns that fit the boundary conditions (the two fixed ends) can exist as stable standing waves.
Organ pipes? Same deal. Only certain sound wavelengths fit inside the pipe and reinforce themselves. Other frequencies just bounce around and die out.
The pattern you need to see:
When you confine a wave to a space with boundaries, only certain wave patterns can exist. Everything else destructively interferes and disappears.
This isn't just an analogy for quantum mechanics. This IS quantum mechanics.
Okay, this is where it gets weird. Everything I just said about water and strings applies to electrons. Because electrons aren't little balls. They're waves.
This experiment proved it beyond any doubt. Fire electrons one at a time through two narrow slits. What pattern appears on the detector screen behind the slits?
If electrons were particles (little balls), you'd see two bright stripes - one behind each slit.
What actually happens? You see an interference pattern - alternating bright and dark bands. Exactly like when water waves pass through two gaps and overlap on the other side. Bright bands where wave peaks align (constructive interference). Dark bands where peaks and troughs cancel (destructive interference).
But here's the really weird part: fire electrons one at a time, so slowly that only one electron is in the apparatus at once. The pattern still builds up, dot by dot. Each electron interferes with itself. It's not a particle going through one slit or the other - it's a wave going through both slits simultaneously.
If you try to measure which slit each electron goes through, the interference pattern disappears. They suddenly act like particles when you look, waves when you don't.
This isn't philosophy. It's measurable, repeatable physics.
Electrons are waves. Not "wave-like" or "sometimes waves." They ARE waves. Waves of probability showing where they might be found if you measure them.
If electrons are waves, and atoms are the spaces that confine them, then atoms are like tiny three-dimensional organ pipes or guitar strings.
Just like only certain sound frequencies can exist in an organ pipe, only certain electron wave patterns can exist around a nucleus. Most wave patterns immediately collapse (destructive interference). But a few specific shapes work - they reinforce themselves, fit the boundaries, create stable standing waves.
Those stable wave patterns are what we call orbitals. Not orbits, because electrons aren't traveling in circles. They're standing wave patterns - regions where the electron wave exists in a stable configuration.
Now we can answer the big question: why v=0, v=1, v=2 for molecular vibrations? Why discrete electron energy levels? Why specific photon wavelengths?
Because they're all standing wave patterns, and only certain patterns fit.
Remember that C-O bond vibrating back and forth from Level 6? Think of it like a spring with masses on each end (carbon nucleus and oxygen nucleus). But the "spring" is actually the electron cloud holding them together.
When the bond vibrates, the nuclei move back and forth. But here's the thing: those nuclei also have wave properties. The bond can't vibrate at just any amplitude. Only certain vibration patterns are stable - patterns where the wave fits properly in the space between the nuclei.
v=0 (ground state): The minimum vibration. Like the fundamental mode of a guitar string. This is the lowest energy standing wave pattern that can exist in that bond.
v=1 (first excited state): More vigorous vibration. Like the first harmonic - a higher-energy standing wave pattern. The nuclei swing farther apart and closer together.
v=2 (second excited state): Even more vigorous. Like the second harmonic - another allowed standing wave pattern with even more energy.
v=0.5? Can't exist. That would be like trying to make a guitar string vibrate at a frequency between the fundamental and first harmonic. The wave pattern doesn't fit. It would destructively interfere with itself.
This is why your CO₂ laser works so well on wood. The laser produces photons at exactly the frequency that matches the v=0 → v=1 transition. It's pushing the C-O "swing" at exactly the right rhythm - the resonant frequency where energy transfers efficiently and builds up in that vibrational mode.
When physicists solved the wave equation for electrons around atoms (the equation that describes how electron waves behave), they found something surprising: only certain wave patterns are stable.
Think of it like 3D versions of those standing wave patterns in a guitar string, except wrapped around a nucleus in spheres and dumbbells and more complex shapes.
For the atoms in wood (carbon, oxygen, hydrogen):
First shell (closest to nucleus):
1 spherical wave pattern (called "1s" orbital) → holds 2 electrons max
Second shell (where chemistry happens):
1 spherical wave pattern ("2s" orbital) → 2 electrons
3 dumbbell-shaped wave patterns ("2p" orbitals) → 6 electrons total (2 each)
Total: 2 + 6 = 8 electrons
That's where "8" comes from.
Shell 2 can support exactly 4 different stable wave patterns. The math of fitting waves around a nucleus in 3D space gives you these four specific patterns. Not 3, not 5. Four.
It's not magic. It's not arbitrary. It's geometry. Just like a guitar string of a certain length supports specific harmonics, a spherical potential well (the atom's electric field) supports specific 3D standing wave patterns.
Okay, so shell 2 has 4 stable wave patterns. But why only 2 electrons in each pattern? Why not pack in 10?
Because of something called the Pauli Exclusion Principle: no two electrons can be in exactly the same state. Same wave pattern, same energy, same everything - can't happen.
But electrons have this property called spin. It's not literally spinning (they're waves, remember?), but it's real - you can measure it. And it comes in two options: up or down. Call them ↑ and ↓.
So for each wave pattern (orbital):
→ One electron with spin ↑
→ One electron with spin ↓
→ That's it. Maxed out.
They're in the same wave pattern, but different spin states, so they're not exactly the same. Try to add a third? Both spin states are full. It has to find a different wave pattern or go to the next shell up.
This is why 4 orbitals × 2 spins = 8 electrons max in shell 2.
Atoms with completely filled wave patterns (full outer shells) are stable. All the available standing wave patterns are occupied. Atoms with partially filled patterns are reactive - they're missing electrons to complete the patterns.
Real examples from wood:
Carbon: 6 electrons (2 + 4)
Needs 4 more to complete all 4 wave patterns in shell 2
→ Shares electrons with oxygen, hydrogen, other carbons
→ Forms cellulose, lignin - the stuff wood is made of
Oxygen: 8 electrons (2 + 6)
Needs 2 more to complete all 4 wave patterns in shell 2
→ Bonds with carbon, hydrogen
→ Creates C-O and O-H bonds (the ones your CO₂ laser targets)
Neon: 10 electrons (2 + 8)
All 4 wave patterns in shell 2 are completely filled
→ Doesn't bond with anything
→ This is why neon is a "noble gas" - too stable to react
The drive to fill shell 2 is what creates chemical bonds. And breaking those bonds (with enough laser energy) is what cuts wood. It all comes back to this: atoms want 8 electrons in shell 2 because that's how many electrons fit in the four stable wave patterns that exist at that energy level.
Now we can understand why wavelength matching is so critical - why your CO₂ laser works on wood but your diode laser doesn't.
When a photon's frequency matches a transition between allowed states (v=0 → v=1 for example), the electromagnetic wave can drive that transition efficiently.
Think back to the water pan. You're sloshing at exactly the right frequency. Each push adds energy to the standing wave. The wave builds up, gets bigger, stores more energy.
Same thing with a C-O bond. A 10.6 μm photon oscillates at exactly the frequency of the v=0 → v=1 transition. Each photon that hits the bond pushes it at exactly the right rhythm. Energy accumulates in the vibrational mode. With enough photons (happens in milliseconds), the vibration is so violent that the bond breaks.
On resonance with damping (collisions, phonons removing energy):
Energy gets trapped as heat. The molecule can't re-radiate fast enough. Temperature builds. Bonds break. Wood vaporizes.
When a photon's frequency doesn't match any allowed transition, the electromagnetic wave still pushes on the electrons - but at the wrong rhythm.
Back to the water pan. You're pushing at a frequency between two modes. Sometimes you push in phase (adding energy), sometimes out of phase (taking energy back). Net result: the energy sloshes back and forth between your hand and the water. The wave doesn't build up. Most of the energy returns to your hand.
Same thing with a molecule. A 450 nm photon (blue diode laser) oscillates at 667 THz. The C-O bond wants to vibrate at 28 THz. The photon is pushing at a frequency 24 times too fast.
The bond's electrons get shaken around by the electromagnetic wave, but they oscillate out of phase with the driving field. The induced oscillation creates its own electromagnetic wave (re-radiation). Most of the photon's energy gets re-radiated back out - elastic scattering, like light bouncing off.
Only a small fraction (~1-5%) might couple into heat through random collisions during the interaction. The rest? Bounces off or passes through.
This is why your 20W diode laser struggles on light wood.
Most of the photons are off-resonance for the C-O and C-H bonds that make up cellulose. The energy sloshes back out. Only chromophore molecules (lignin, tannins in dark wood) have the right wave patterns to absorb blue photons efficiently.
Your 60W CO₂ laser? Every photon hits at exactly the right frequency. Nearly perfect resonance with C-O bonds. Energy gets trapped, not re-radiated. ~90% absorption. That's the difference.
The wave picture explains why energy levels are discrete. Now let's add the quantum rules for how energy moves between those levels.
Remember back in Level 2 when we said different wavelengths carry different energies? That's true. But here's the quantum mechanics part we skipped: energy doesn't just have different amounts - it's fundamentally quantized. It comes in discrete packets, not smooth gradients.
Back in 1900, Max Planck figured this out while trying to explain why hot objects glow. He discovered that energy transfer happens in chunks, and the size of each chunk is locked to the frequency. Higher frequency = bigger chunk. Lower frequency = smaller chunk. You can't have an in-between chunk size any more than you can have a guitar string vibrating at an in-between frequency.
This creates the most important quantum rule for understanding lasers: you can't save up small chunks to make a big chunk. Each photon interaction is independent. Either the chunk is big enough to cause a transition or it isn't.
And this - right here - is the deepest answer to the question that started this entire guide: "Why do different lasers work on different materials?"
Why UV lasers can do things CO₂ lasers can't (even with equal power):
A C-C bond needs about 3.6 eV to break. A UV photon carries 3.5 eV - big enough chunk to break the bond directly. A CO₂ photon carries 0.117 eV - way too small.
Here's the quantum mechanics part: you could have a 60W CO₂ laser blasting billions of photons per second, and a tiny 5W UV laser. The UV laser breaks C-C bonds. The CO₂ laser doesn't. Not because of total power - because of chunk size.
Thirty CO₂ photons hitting the same bond simultaneously won't combine their energies. Each photon is a separate quantum interaction. 30 × 0.117 eV doesn't equal 3.5 eV in quantum mechanics - it equals thirty separate tiny interactions that each fail to break the bond.
When a molecule drops from v=1 to v=0, or an electron drops from one orbital to another, it doesn't gradually slide down. The transition is instantaneous. One moment it's in the high-energy wave pattern, the next moment it's in the low-energy wave pattern.
Why? Because these are discrete wave patterns, not a continuous range. It's like a guitar string suddenly switching from the second harmonic to the fundamental. There's no in-between pattern.
Energy must be conserved. When the drop happens, the energy difference has to go somewhere. It can't just vanish. The two places it can go:
Here's the quantum weirdness that makes lasers possible: when a photon encounters a molecule in an excited state, it can trigger that molecule to emit a matching photon.
This is stimulated emission - the "SE" in LASER (Light Amplification by Stimulated Emission of Radiation). It's not just a cool name - it's the literal quantum mechanism that separates lasers from flashlights.
Why does this happen? Because photons are waves, and identical waves reinforce each other.
You have a CO₂ molecule at v=1. An existing 10.6 μm photon (which is really an electromagnetic wave) passes by. That wave is oscillating at exactly the v=1 → v=0 transition frequency.
The molecule can drop spontaneously (random direction, random timing). Or the existing wave can trigger the drop - and when it does, the new photon is emitted into the same wave pattern as the trigger photon. Same frequency, same direction, same phase.
It's constructive interference. The waves add up. This is fundamentally different from how matter particles work - you can't have two electrons in exactly the same state (Pauli exclusion). But photons? They prefer to be in the same state. When you have one photon in a mode, adding a second becomes more likely.
This is why one photon becomes two, two become four, four become eight.
Exponential amplification. The cavity mirrors ensure this happens along one direction. That's your laser beam. The technical term is "bosonic enhancement" - but the concept is simple: identical waves reinforce, so photons like to clone themselves into the same mode.
Here's what Level 8 reveals that you couldn't see before: Every successful laser-material interaction is the same quantum mechanism.
Photon frequency matches the gap between two standing wave patterns in the material. When it matches, energy gets trapped. When it doesn't, energy sloshes back out.
The only difference is what kind of standing waves you're exciting.
The C-O bond is a standing wave - nuclei oscillating back and forth in a confined space. v=0 is one pattern. v=1 is a different pattern (more vigorous oscillation).
Your 10.6 μm photon arrives as a wave at 28 THz. The C-O bond vibrates at... 28 THz. Same frequency. The waves interfere constructively. Energy trapped. Bond jumps from v=0 → v=1.
Resonance = frequency match between photon wave and vibrational wave pattern.
Chromophores have π electrons in conjugated systems - electrons spread across multiple atoms creating standing wave patterns. Ground state (π) is one pattern. Excited state (π*) is a different pattern (electron wave extends further).
Your 450 nm photon arrives as a wave at 667 THz. The π→π* gap in lignin happens to match around that frequency. Same frequency. Waves interfere constructively. Energy trapped. Electron jumps π→π*.
But plain cellulose? Its electronic transitions are way up in UV. 667 THz doesn't match any gap. Energy sloshes back out.
Same mechanism as CO₂, just electronic waves instead of vibrational waves.
Bonding orbitals are standing wave patterns where electron density builds up between atoms (constructive interference = attraction). Antibonding orbitals are standing wave patterns where electron density builds up outside atoms (destructive interference in middle = repulsion).
Your 355 nm photon arrives at 845 THz carrying 3.5 eV. That matches the gap between bonding and antibonding patterns in C-C bonds. Electron jumps to antibonding pattern. Atoms suddenly repel instead of attract. Bond breaks.
Still resonance - photon frequency matching electronic wave pattern gap. Just powerful enough to break bonds directly instead of building up heat.
Metals don't have discrete standing wave patterns. Free electrons everywhere = continuous spectrum of states. Any photon frequency can be absorbed.
This breaks the resonance requirement. Your fiber laser works not because of frequency matching, but because you can pulse fast enough to beat thermal diffusion.
Metals are the only common material where wavelength doesn't matter. Everything else? You're matching standing wave gaps or you're fighting physics.
The Unifying Quantum Principle:
CO₂ on wood, diode on chromophores, UV on bonds - same mechanism. Photon wave frequency matches the gap between two standing wave patterns confined in atoms/molecules. Constructive interference. Energy trapped. Transition happens.
The reason wavelength determines what materials you can process isn't about "penetration" or "power." It's quantum mechanics. You're either matching a standing wave transition frequency, or you're not.
At the quantum level, there's not much "practical" advice - but understanding why these rules exist helps you understand why materials behave the way they do:
The deepest answer to "why do lasers work on some materials but not others?" is this: Because waves in confined spaces create discrete energy levels. Because energy transfer happens in chunks matching those discrete levels. Because resonance happens when frequencies match. Because off-resonance energy sloshes back out.
That's as deep as physics goes. After that, you're asking "why does math describe reality?" and nobody knows.
Go ask your mom.
You started with a simple question: "Why do different lasers work on different materials?"
Look where that took you:
Level 1: Observable behavior - CO₂ cuts wood fast, fiber marks metal, diode struggles on everything.
Level 2: Photon fundamentals - wavelength determines energy per photon, power determines how many.
Level 3: Material chemistry - C-O-H chains in organics, Fe atoms in metals, Si-O networks in glass.
Level 4: Atomic connections - covalent bonds act like springs with resonant frequencies, metals have electron seas.
Level 5: Breaking bonds - vibrational resonance for organics, pulsing for metals, direct breaking for UV.
Level 6: How lasers work - vibrational drops in CO₂, electronic drops in diodes, 4f transitions in fiber.
Level 7: Complete journeys - following photons from creation to material removal.
Level 8: The quantum foundation - why all of this happens at discrete energy levels because waves in boundaries only support certain patterns.
The reason your 60W CO₂ laser cuts 3mm plywood in one pass while your 20W diode takes 15 passes:
Waves trapped in the C-O bond support specific vibrational patterns at 28 THz. Your CO₂ laser creates photons at 28 THz. Resonance lets energy transfer efficiently when frequencies match. Your diode creates photons at 667 THz - off-resonance, so most energy re-radiates back out.
From "why does my laser cut wood?" to the fundamental wave equations that govern reality. Pretty cool journey.
Alright. Here's the thing nobody mentions when they're selling lasers.
Those C-O bonds in wood? They're not just "connections between atoms." They're standing wave patterns. The v=0 state and v=1 state are different wave patterns - like the fundamental and first harmonic on a guitar string.
CO₂ photons at 28 THz? That frequency exactly matches the difference between those two wave patterns. Constructive interference. The wave pattern reinforces. Energy gets trapped. The bond vibration amplitude grows until it breaks.
Diode photons at 667 THz? That's 24× the wrong frequency. Destructive interference. Like pushing a pan of water at random - the energy just sloshes around, most radiates back out. Off-resonance.
This is why you can't just "add more power" to make a diode cut like CO₂. More power = more photons at the wrong frequency. You're just pushing the water pan harder. Still the wrong rhythm. Still scatters.
The marketing: "Watts determine performance."
The physics: "Frequency determines if it works at all."
$600 in test materials taught me that lesson. Now when I review lasers, I ask about wavelength before I ask about power. When some company sends me a press release claiming their new 30W diode "rivals CO₂ performance," I order test materials. Because $600 taught me marketing doesn't understand quantum mechanics.
You've got something most laser buyers don't: the actual reason why lasers work.
Next time you're looking at a new material, you don't have to guess. Look up the molecular structure. Figure out the energy gaps. Match them to wavelengths. Takes five minutes instead of burning through test sheets and wondering why it's not working.
When someone shows you a spec sheet claiming "30W diode performance equals 50W CO₂," you know what questions to ask. What wavelength? What material? What bond energies? The physics doesn't care about the marketing copy.
That's the shift. You went from "this laser cuts wood, that one doesn't" to understanding why at the quantum level. From blindly testing to predicting outcomes. From guessing to knowing.
So next time you're choosing a laser, or explaining to someone why their diode struggles with plywood, or figuring out if UV will work on that new material - you've got the foundation. The actual physics. The standing wave patterns, the photon frequencies, the resonant energy transfers.
That's not just knowledge. That's power to make better decisions, avoid expensive mistakes, and help other makers skip the trial-and-error phase you just bypassed.
Pretty freakin' cool what happens when you understand the physics instead of just trusting the marketing.
