OneLaser Hydra 9

Let’s talk about the OneLaser Hydra—a dual-laser beast that’s shaking up the game. In this review, I’ll break down its killer features, compare it to the competition, and help you figure out if this machine deserves a spot in your workshop.

Meet the Hydra: Dual-Laser System

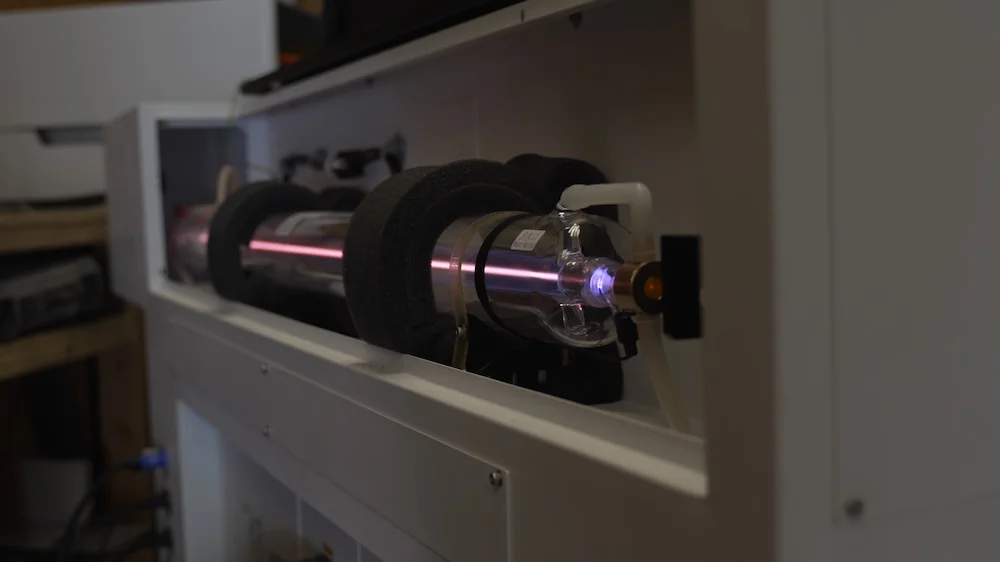

The most unique feature of the OneLaser Hydra is its dual-laser design. Unlike traditional laser machines that rely on a single laser source, the Hydra integrates two distinct laser technologies into one cohesive system. At the back, you’ll find a high-powered CO2 glass tube laser, capable of delivering up to 100 watts of cutting power.

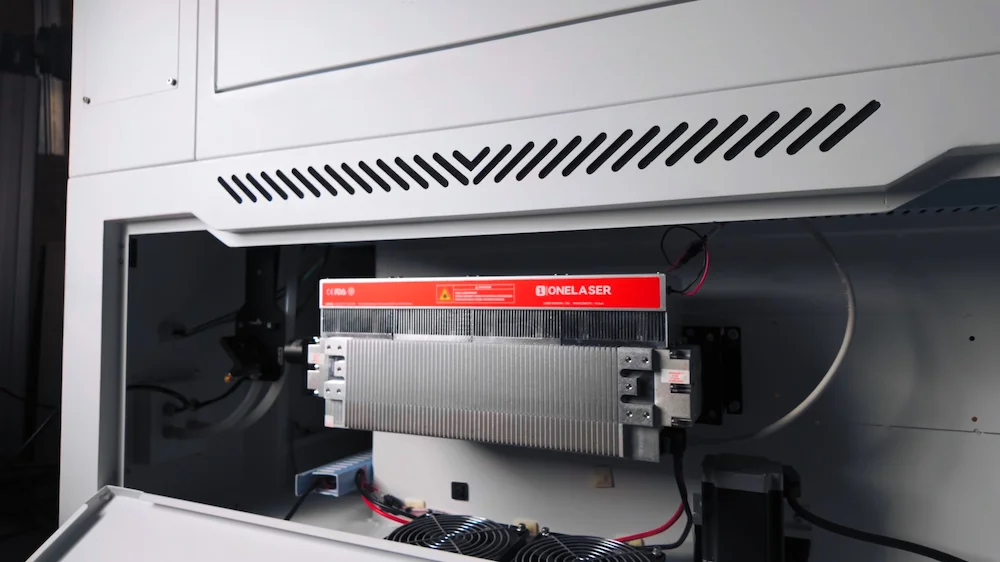

But that’s not all! The Hydra also features a 38-watt RF (radio frequency) metal tube laser, strategically positioned to work alongside the CO2 laser.

This dual-laser setup allows you to leverage the strengths of both technologies in a single workflow. The RF laser excels at fine engraving and detailed markings, while the CO2 glass tube shines when cutting through thicker materials. You can seamlessly switch between the two laser sources within a single job, unlocking a level of versatility and efficiency that’s hard to beat.

Hydra Models and Sizes

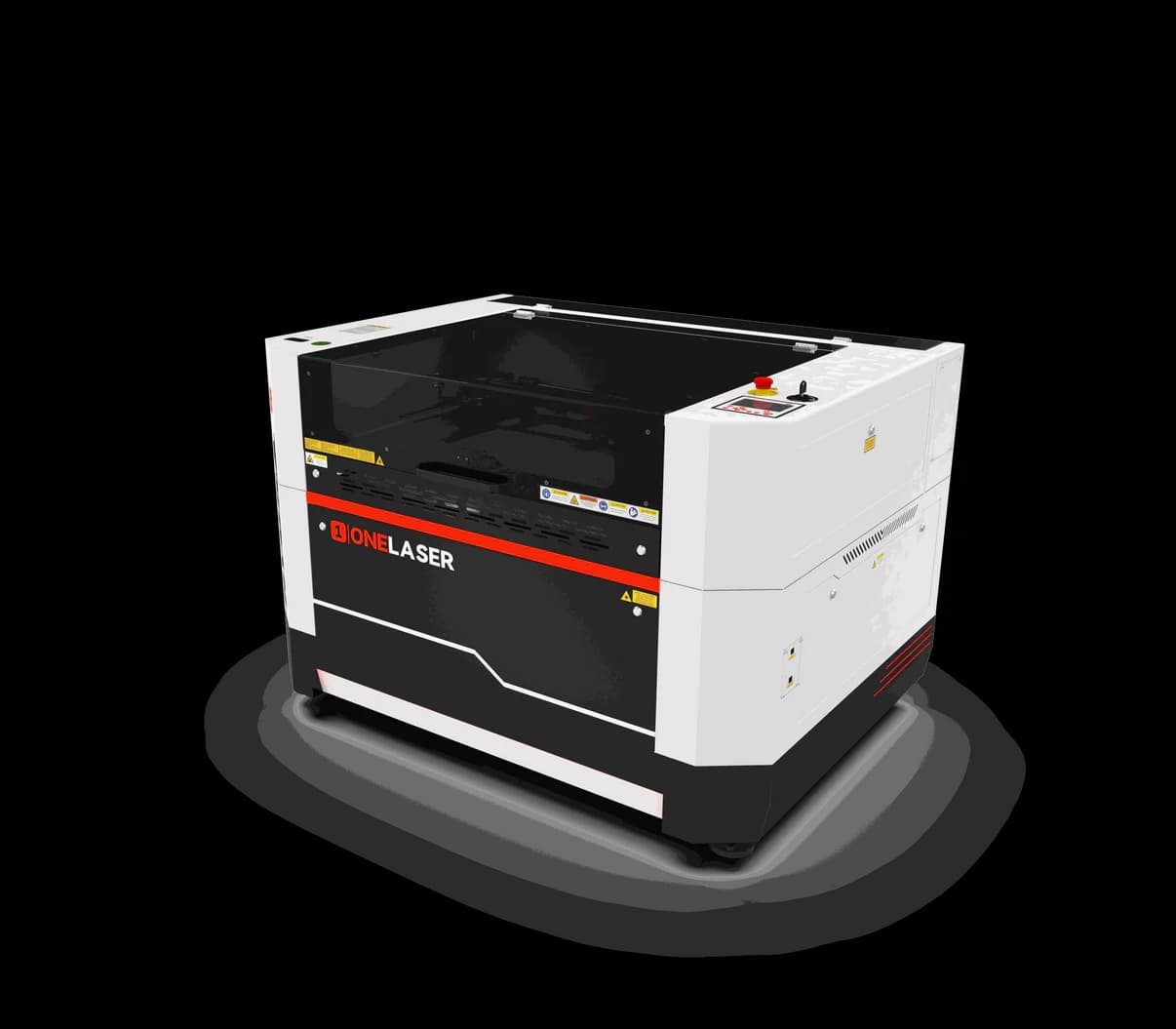

The Hydra series comes in four different models, each tailored to fit a range of workspace sizes and production needs. The Hydra 7, 9, 13, and 16 refer to the maximum work area dimensions in the X-axis, ranging from 700mm to 1600mm. No matter which model you choose, you’ll enjoy the same core features and performance that make the Hydra series so compelling.

For this review, we’re focusing on the Hydra 9, which offers a generous 900mm x 600mm work area. This size strikes a nice balance between the compact Hydra 7 and the expansive Hydra 16, making it a versatile option for a wide range of laser projects, from intricate engravings to larger cutting tasks.

OneLaser and Thunder Laser Connection

OneLaser might be a new name in the laser machine market, but they've got a tight partnership with a leading laser manufacturer. There’s a close relationship between OneLaser and the well-established Thunder Laser brand, with the Hydra series essentially leveraging Thunder Laser’s proven manufacturing capabilities and design expertise.

If you’re familiar with Thunder Laser’s machines, you’ll notice a lot of similarities in features and overall design with the Hydra. This partnership ensures that the Hydra is built to the same high standards as its Thunder Laser counterparts, and time will tell if that also leads to having their proven track record of reliability and performance.

Speed and Precision

When it comes to speed and acceleration, the Hydra series is in a league of its own. With a top speed of 1200mm/second and an impressive 3G acceleration rate, this machine can zip through your cutting and engraving tasks like a pro.

To put it simply, the Hydra’s speed and acceleration capabilities are on par with high-end machines that can cost thousands more. You’d have to step up to something like the Aeon Redline series, which uses advanced servo motors and ceramic laser tubes, to find significantly faster performance—and at a much higher price point.

Inline Red Laser for Precision

One of the standout features of the Hydra is its integrated red laser pointer, which provides precise positioning guidance as you set up your projects. Unlike cheaper machines where the red dot may be offset from the actual laser path, the Hydra’s red laser is perfectly aligned, ensuring that what you see is exactly where the laser will cut or engrave.

This inline red laser makes it super easy to frame your designs, set custom origin points, and fine-tune the placement of your work on the generous 900mm x 600mm work area. It’s a small but impactful detail that really enhances the overall user experience and workflow efficiency.

Industrial Work Bed

Stepping up from desktop-style laser machines, the Hydra features a heavy-duty work bed that’s built to handle the demands of industrial-grade fabrication. Unlike smaller lasers where the cutting head moves up and down, the Hydra’s entire work bed adjusts vertically, providing a massive 150mm of Z-axis travel.

• 900mm x 600mm work area
• 150mm of Z-axis travel for taller projects
• Single belt-driven Z-axis system for precise alignment
• Removable slat and honeycomb work bed options
• Integrated locking pins for repeatable project setups

The work bed can be configured with either removable slats or a honeycomb metal surface, depending on your needs. And to ensure perfect alignment for repeat cuts, the Hydra features integrated locking pins that securely anchor the work bed to the machine’s frame.

Material Passthrough Openings

When working with larger workpieces or materials that need to pass all the way through the machine, the Hydra’s front and rear passthrough openings come in handy. These openings allow you to slide long items into the work area, with a maximum material thickness of 1.5 inches able to fit beneath the laser head.

This passthrough feature is a practical addition that expands the Hydra’s versatility, making it easier to handle a wider range of projects without having to resort to external material handling solutions.

Easy Maintenance

Keeping your laser cutter or engraver clean and well-maintained is crucial for consistent performance and safety. The Hydra makes this task easy with its removable bottom tray, which collects all the debris and offcuts generated during operation.

Simply pull out the tray, which rides on rollers for smooth extraction, and you can easily empty the contents. This design element helps streamline the cleanup process, ensuring that your Hydra stays in top shape with minimal downtime.

Integrated Camera System

Like many modern laser machines, the Hydra comes equipped with an integrated camera system that provides a bird’s-eye view of the work area. This camera feed can be accessed through the machine’s touchscreen interface, allowing you to visually confirm the positioning of your designs before hitting the start button.

While the camera’s usefulness may diminish as you become more familiar with the Hydra’s intuitive controls, also you must be connected to the Hydra through USB through a seperate cable to control it with Lightburn.

User-Friendly Touchscreen

At the heart of the Hydra’s user experience is its state-of-the-art touchscreen interface. This large, responsive display provides direct, hands-on control over all the machine’s key functions, from job management and file selection to laser parameter adjustments and automated focusing.

With physical jog controls for quick axis movements and a dedicated emergency stop button for added safety. Navigating the menu system is straight forward, and the ability to perform tasks directly on the machine (without relying on a connected computer) streamlines your workflow.

Safety Features

As with any high-powered laser system, safety is crucial. The Hydra is equipped with a comprehensive suite of safety features to protect both you and your workspace:

• Magnetic lid sensors to prevent operation with the lid open
• A large, easily accessible emergency stop button
• A key-operated power switch to restrict unauthorized use
• A visual status indicator light that pulses when the laser is active
• An integrated air quality sensor to monitor fume levels

Modular and Portable Design

One of the Hydra’s standout features is its modular design, which makes it easier to transport and install in your workshop or studio. Unlike traditional laser machines that arrive as a single, bulky unit, the Hydra can be disassembled into three separate layers: the base, the middle section, and the top lid.

This modular approach allows you to navigate the Hydra through standard doorways and into tighter spaces, where a fully assembled machine might not fit. Once in your desired location, the Hydra can be quickly reassembled, saving you time and effort during the installation process.

Dual-Laser Power

While the Hydra’s impressive speed, precision, and safety features are all worthy of praise, the machine’s true standout capability is its dual-laser design. By integrating both a CO2 glass tube laser and an RF metal tube laser, the Hydra offers unparalleled versatility and performance that sets it apart from the competition.

The CO2 laser excels at cutting through a wide range of materials, from wood and acrylic to fabric and leather. Its high-wattage output (up to 100 watts) allows for fast, clean cuts on thicker workpieces. Meanwhile, the RF laser shines when it comes to fine engraving and detailed markings, thanks to its precise beam control and ability to handle delicate surfaces.

What’s really neat is the Hydra’s ability to seamlessly switch between these two laser sources within a single job. Using the Lightburn software, you can assign different layers of your design to be processed by the CO2 or RF laser, allowing you to leverage the strengths of each technology without having to manually reconfigure the machine.

The laser source works through a serious of reflecting mirrors that get driven up and down on the back of the machine as it switches between the CO2 Glass and RF sources.

Comparing the Hydra

So how does it stack up against the competition?

OneLaser X Series

As the Hydra’s desktop-sized sibling, the OneLaser X Series offers a more compact and affordable entry point into the OneLaser ecosystem. The X Series is available in both CO2 glass tube (XRF) and RF metal tube (XRF) configurations, providing a glimpse into the dual-laser technology that the Hydra takes to the next level.

While the X Series is a capable machine in its own right, the Hydra’s larger work area, faster speeds, and integrated dual-laser system make it the clear choice for users who require more industrial-grade performance. However, the X Series can be a great option for those with limited space or a tighter budget. Check out the OneLaser X Series on Machines for Makers.

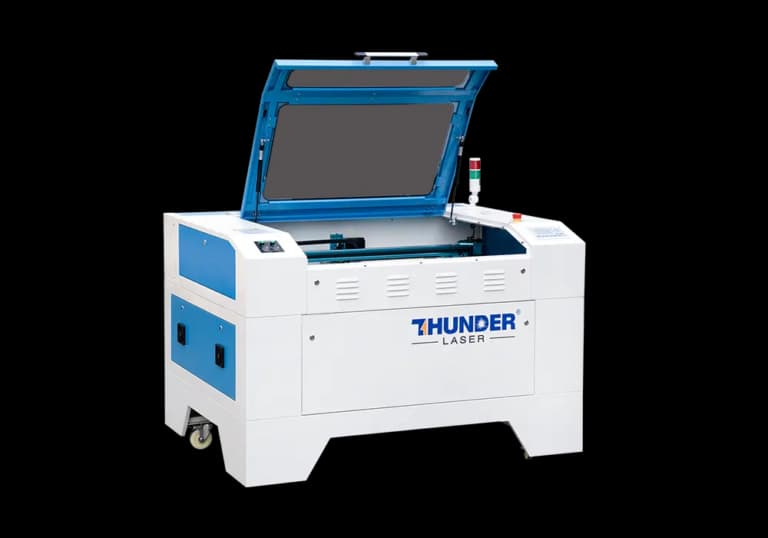

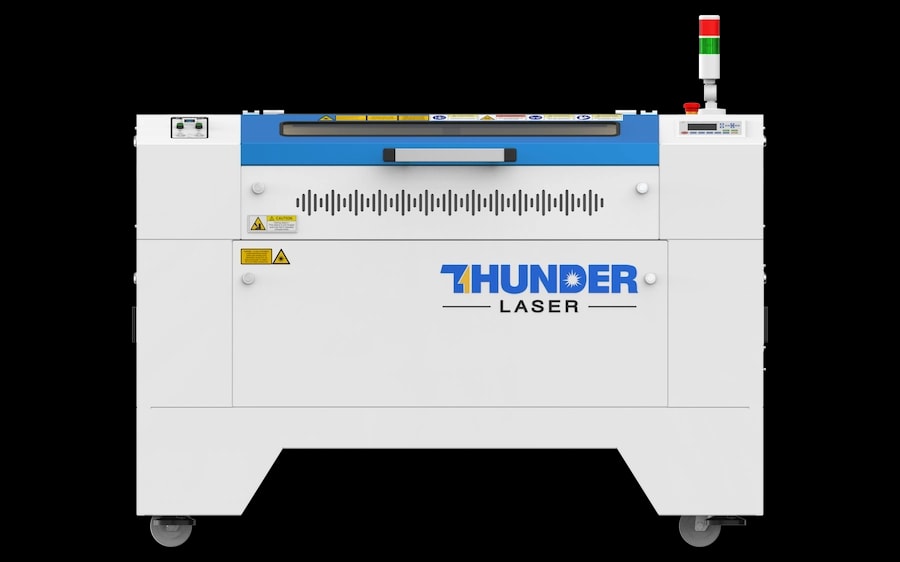

Thunder Laser Nova Series

As mentioned earlier, the Hydra shares a close relationship with Thunder Laser’s machines, and the Nova series is a natural point of comparison. The Nova 35, for example, is a high-end CO2 laser cutter that offers similar capabilities to the Hydra’s glass tube laser.

However, the Hydra’s dual-laser design and its significantly lower price point (around $7,000 for the 100-watt version, compared to $9,000+ for the Nova 35) make it a more compelling option for most users. The Hydra also boasts faster speeds and a more modern touchscreen interface. While the Nova series is a solid choice, the Hydra’s unbeatable value proposition is hard to ignore.

OMTech and Monport Machines

Another set of competitors to consider are the OMTech AF 2440 and the Monport Pronto 45, both of which are 100-watt CO2 laser cutters. These machines offer a similar form factor and capabilities to the Hydra, but at a slightly lower price point.

However, the Hydra’s superior build quality, speed, and advanced features like the dual-laser system give it a clear edge over these alternatives. The OMTech and Monport machines simply can’t match the Hydra’s level of performance and versatility, even if they come in at a slightly lower cost. For users who demand the best, the Hydra is well worth the investment.

Final Thoughts

Its dual-laser design, lightning-fast speeds, and robust industrial construction make it a standout choice for anyone in the market for a high-performance cutting and engraving solution.

While the Hydra’s price tag of around $7,000 (for the 100-watt version) may seem steep at first glance, the machine’s capabilities and versatility make it a great value prop especially with future expandability options. To find a comparable level of performance, you’d have to spend thousands more on machines from the likes of Aeon or other premium brands.
